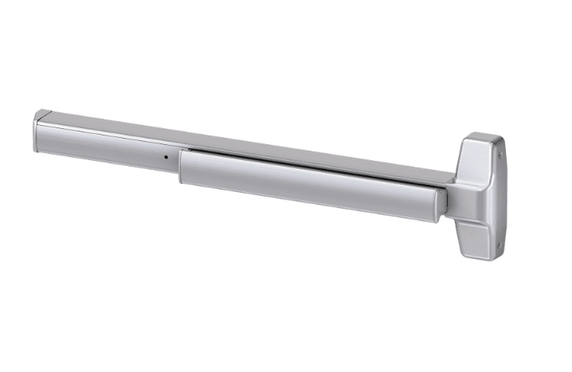

Von Duprin 7847WDCEO 3 626 36" Wood Door Concealed Vertical Rod Device, Exit Only, Wide Stile Pushpad

Von Duprin 7847WDCEO 3 626 Grade 1 Wood Door Concealed Vertical Rod Exit Device, Wide Stile Pushpad, 36" Device, Exit Only, Hex Key Dogging, Satin Chrome Finish, Non-Handed

7847WDC Concealed vertical rod device for use on single or double wood doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1

Specification
Device function: EO - Exit Only

Device length: 3' - 2' 6" to 3' (762mm to 914mm) door size

Device centerline from finished floor: 39-13/16" (1011mm) - 39-11/16" (1008mm) with mullion

Center case: 7-7/8" x 2-3/4" x 2-3/8" (200mm x 70mm x 60mm)

Mechanism case: 2-5/16" x 2-1/8" (59mm x 54mm)

Projection: Pushbar neutral - 3-13/16" (97 mm) - Pushbar depressed - 3-1/16" (78mm)

Latch bolt: Deadlocking, 5/8" (15.875mm) throw

Door undercut: 1/4" (7mm) maximum

Top and bottom latch case: 3-3/4" x 1-1/2" x 1" (95mm x 38mm x 25mm)

Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm).
Bottom rod adjustable 35-5/8" (905mm) to 49-5/8" (1260 mm).

Scalp plate: Device is furnished standard with an 8" (203mm) long scalp plate for easy access to rods.

Finishes: US26D (626), US28 (628), 313 (710), US4 (606), US3 (605), US15 (619), US26 (625), 315 (711), 643E

Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors

Electrified Options
Switches
Request to Exit (RX)
• Signals use of an opening
• SPDT switch to monitor pushpad
• 2 A maximum @ 24VDC; below 50 mA @ 24VDC for low current option

Latch Bolt Monitoring (LX)
• Signals use of an opening
• SPDT switch to monitor latch bolt
• 2 A maximum @ 24VDC; below 50 mA @ 24VDC for low current option

Latch Retraction
Quiet Electric Latch Retraction (QEL)
• Bolt retraction via switch
• Converts exit door to push-pull operation
• Voltage: 24VDC
• Current: 1.0 A inrush (0.5 sec.) / 0.14 A holding

Model: Von Duprin 7847WDCEO 3 626
