Door Wrap Around Plate
A door wrap around plate is a metal plate that wraps over the edge of the door at the lock, to repair damaged wood or metal, cover an old cutout or convert the prep to a different lock. Shop Don-Jo wrap around plates for cylindrical locks, mortise locks, double lock combinations, Simplex and Alarm Lock conversions and blank plates.
What is a door wrap around plate?

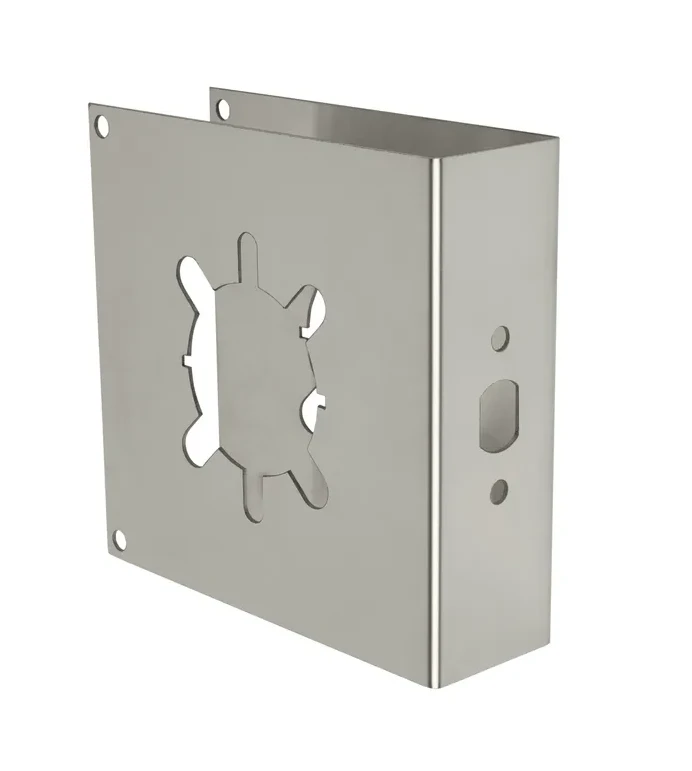

A wrap around plate, also called a door reinforcer, is a U-shaped plate that covers both faces and the edge of the door at the lock area. It is screwed or bolted through the door and spreads the load of the lock over a larger area. Facility teams use it for three jobs: repairing a split or worn door around the lock, hiding the holes left by a previous lock, and changing the door prep so a different lock can be fitted without replacing the door. The plates in this category are made by Don-Jo, and the listings show 22 gauge steel on the models with full specifications.
Choose the plate by lock type and door prep
The cutout in the plate must match the lock you will install, so start with the lock, then the door. Each Don-Jo listing gives the hole size, height, width, backset and door thickness. For example, the 4-CW is listed for cylindrical locks with a 2-1/8" hole, 9" height, 4-1/4" width, 2-3/4" backset and a 1-3/4" door, while the 51-CW has a 2-1/8" hole, 4-1/2" height and 2-3/8" backset for 1-3/8" doors. Compare these numbers with the lock template and the door before ordering.
| Use | Don-Jo models in the catalog | Notes from the listing |
|---|---|---|
| Cylindrical (bored) locks | 1-CW, 2-CW, 3-CW, 4-CW, 4-2-CW, 12-CW, 12-2-CW, 51-CW, 61-CW, 81-CW, 81-S-2-CW, 20-S-CW, 20-S-2-CW | 2-1/8" hole; backsets 2-3/8" or 2-3/4"; S = satin stainless steel |
| 5" backset cylindrical locks | 55-S-CW | Satin stainless steel |
| Mortise locks | 504-CW, 504-FE (86 cut-out), 514-CW (escutcheon trim) | For mortise lock preps |
| Double lock combinations | 256-CW, 258-CW, 481-CW, 942-CW, 943-CW | Two holes, for example 5-1/2" centers on the 256-CW |
| Kaba Simplex and Alarm Lock conversions | 14-CW, 14-2-CW, 15-CW, 9-CW, 27-CW, 5000-CW, E2000-CW | Convert Simplex 1000 or Alarm Lock preps, or fit Kaba 5000 and E2000 |
| Other locks | 9K-CW (BEST levers), 19-S-CW (Marks IQ) | Brand-specific cutouts |
| Blank plates | 20B-CW, 40-CW, 80-CW, 90-CW | No cutout, drill to suit |
Wrap around plates for mortise locks
A mortise lock wrap around plate covers the edge cutout and the trim holes of a mortise prep. The 504-CW is listed for mortise locks, the 504-FE for a mortise lock with an 86 cut-out, and the 514-CW for mortise locks with escutcheon trim. Use one when the door edge around the lock body is damaged, or when an old mortise prep needs a cleaner face for new trim.
Converting a pushbutton lock prep with a wrap around plate
When a Kaba Simplex 1000 or Alarm Lock pushbutton lock is removed, the door is left with a prep that a standard lock will not cover. Don-Jo conversion plates solve that. The 14-CW converts Simplex 1000 and Alarm Lock DL2500, 2700/T2 and 3000 series preps to a cylindrical lock, with a 14" height, 5-1/8" width, 2-1/8" hole and 2-3/4" backset for a 1-3/4" door. The 14-2-CW converts to lever locks, and the 27-CW is listed for Alarm Lock 2700/T2 and DL4100 series. Going the other way, the 5000-CW and E2000-CW fit Kaba 5000 and E2000 Series locks.
Wrap around plate vs latch protector
A wrap around plate covers the whole lock area on both faces and the edge, while a latch protector only shields the latch on the outside of the door from prying. Use a wrap around plate to repair or convert a prep, and a latch protector to stop someone working the latch. See door latch protectors.
Fire-rated doors and finishes
Before fitting any plate to a fire-rated door, check that the plate and fasteners are allowed by the door's label and NFPA 80, because added holes and hardware can affect the rating. For finish, several Don-Jo models are listed in satin stainless steel (the S in models like 20-S-CW and 55-S-CW); other finishes are shown on each listing.
Most requested wrap around plates
The wrap around plates our customers look up most often right now:
- Don-Jo 14-CW Wrap Around Plate, Simplex or Alarm Lock to cylindrical
- Don-Jo 504-CW Wrap Around Plate for Mortise Locks
- Don-Jo 4-CW Wrap Around Plate for Cylindrical Locks
- Don-Jo 256-CW Wrap Around Plate for Double Lock Combinations
- Don-Jo 20B-CW Blank Wrap Around Plate
Related categories: mop plates and kick plates, mechanical pushbutton locks and Don-Jo hardware.
What to have ready when ordering a wrap around plate
- The lock you will install (cylindrical, mortise, double lock, Simplex, Kaba or other).
- Hole size and center-to-center distance for double locks.
- Backset (2-3/8", 2-3/4" or 5") and door thickness (1-3/8" or 1-3/4").
- Plate height and width needed to cover the old prep.
- Finish, and whether the door is fire rated.
Repairing many doors? Request a quote for quantity pricing, and schools and agencies can submit a government or school PO. Orders placed before 3:00 p.m. ET on business days ship the same day after card approval, and ground shipping is free on orders of $450+. Call 718-814-6300 to match a plate to your door.
The tables and selection notes on this page are compiled by National Lock Supply from the Don-Jo catalog and product listings. Last reviewed: November 2026.
Frequently Asked Questions
What is a door edge plate called?
A plate that wraps the edge of the door at the lock is usually called a wrap around plate or door reinforcer. A plate that covers only the edge is an edge guard, and a plate that shields only the latch on the outside face is a latch protector. They do different jobs.
Do wrap around plates come blank?
Yes. Blank plates such as the Don-Jo 20B-CW, 40-CW, 80-CW and 90-CW have no cutout, so they can be drilled for a specific lock or used to cover a door where the lock is being removed. Check the size on each listing.
How do I install a wrap around plate?
Remove the lockset, slide the plate over the door edge so its holes line up with the bore and the latch hole, and fasten it with the screws supplied or with the lock's own through-bolts. Then reinstall the lock. When the plate matches the existing door prep, no extra drilling is needed.
