Arrow locks are commercial locksets, deadbolts and exit devices chosen for offices, schools, apartments and retail doors. Shop Arrow cylindrical lever locks (QL, GL, RL, MLX and APL indicator locks), Arrow knob locks, Arrow deadbolts, Arrow exit devices, door closers, cylinders, cores and key blanks.
Arrow lock series at a glance
Arrow names its locks by series letters, and each series has its own grade. Our category names and listings give the grade for each series, so you can compare them quickly.
| Arrow series | Product type | Grade (as listed) | Notes |
|---|---|---|---|
| QL, GL | Cylindrical lever lock | Grade 1 | QL and GL Series lever locks |
| APL | Cylindrical lever lock with indicator | Grade 1 | Status indicator with icons, for example APL02-ST privacy |
| RL, MLX | Cylindrical lever lock | Grade 2 | Sierra and Broadway lever styles (RL) |
| HK | Cylindrical knob lock | Grade 1 | Ball knob |
| MK, RK | Cylindrical knob lock | Grade 2 | Ball, Tudor and Darrin knobs (MK) |
| D Series | Deadbolt | Grade 1 | D60 exit, D61 single, D62 double cylinder |
| E Series, DBX | Deadbolt | Grade 2 | IC versions with SFIC prep less core |

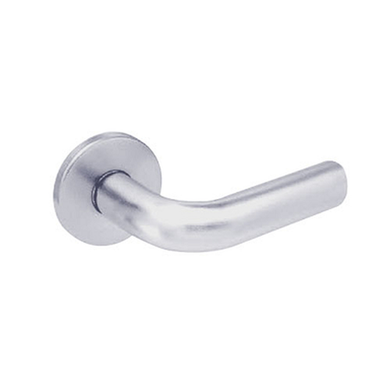

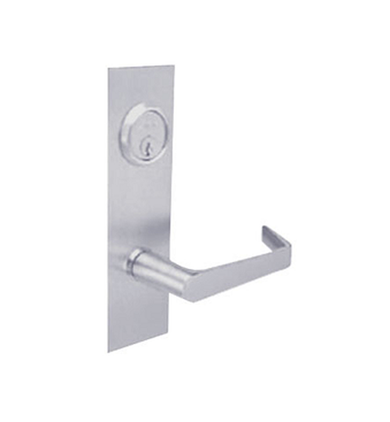

| BM, AM | Mortise lock | See listing | Lever or knob trim; SL lock cases |
| S1250, S1150, FS1250, FS1150, ED910 | Exit device | ED910 BHMA Grade 1 certified | Rim and surface vertical rod; FS = fire rated |
| DCN314, DCN516, 5016NH | Door closer | DCN listed as Grade 1 | Tri-mount push or pull side, hold open versions |
Arrow cylindrical lever and knob locks
Choose an Arrow cylindrical lock by grade, then by function and lever or knob. Grade 1 series such as the QL, GL and APL suit heavy traffic doors, while the Grade 2 RL and MLX suit medium duty interior doors. Function numbers are shared across series: 01 is passage, 02 privacy, 03 communicating, 11 entrance, 12 storeroom and 72 privacy in the QL and MLX ranges, and 08 is a single dummy trim. The APL Series adds a status indicator, which is why the APL02-ST privacy lock is one of our most looked-up Arrow products.
Arrow deadbolts
Arrow deadbolts come in three series. The D Series is listed as Grade 1 (D60 exit, D61 single cylinder, D62 double cylinder). The E Series and the DBX are listed as Grade 2, and the E71-IC, DBX61-IC and DBX62-IC are SFIC-prep versions sold less core. The E61 listing describes a single cylinder deadlock with ANSI function E0152, field reversible, and the DBX61 an adjustable 2-3/8" or 2-3/4" backset for 1-3/8" to 1-3/4" doors.
Arrow exit devices, trims and parts

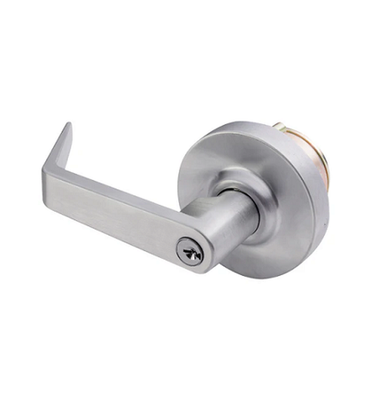

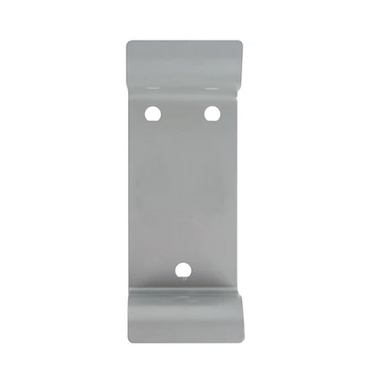

The Arrow exit device range includes the S1250 rim and S1150 surface vertical rod devices, the FS1250 and FS1150 fire rated versions, the ED910 rim exit device (listed as BHMA Grade 1 certified, with hex key dogging) and the PEC910-36 with permanent end cap. Outside trims include the SRX lever trims and SF blank and dummy pull plates. For repairs, the Arrow exit device parts category lists rail assemblies by door width (for example E for 24" to 32", F for 32-1/4" to 36" and G for 36-1/4" to 48"), fire rated thru-bolts and extension rods.
Arrow cylinders, cores and key blanks
Arrow locks use Arrow cylinders and keyways, so replacement cylinders should match the series. The catalog lists the MC61 mortise cylinder in "A" keyway, the RC62 rim cylinder, the 600HD cylinder for Q, W, H, S, ML, L and RL Series, deadbolt cylinders for the D and E Series, SFIC mortise and rim housings, the 100CRP and 7100CRP SFIC cores and Arrow key blanks (K5, K6, L6A, K671, L671, C).
Arrow door closers
Arrow surface closers in the catalog include the DCN314 and DCN516, listed as Grade 1 with tri-mount (regular, parallel and top jamb) installation on the push or pull side, the DCN516-1 hold open version and the 5016NH hold open closer. See Arrow door closers.
Most requested Arrow products
The Arrow products our customers look up most often right now:
- Arrow APL02-ST Grade 1 Privacy Cylindrical Lever Lock with Indicator
- Arrow E61 Grade 2 Single Cylinder Deadbolt
- Arrow ED910 Rim Exit Device
- Arrow DBX61 Grade 2 Single Cylinder Deadbolt
- Arrow MC61 1-1/8" Mortise Cylinder
Related categories: Arrow mortise locks, Arrow exit trims, cylinders, cores and key blanks, Arrow cylindrical lever locks, Arrow knob locks, Arrow deadbolts and Arrow exit devices.
What to have ready when ordering Arrow hardware
- Series letters (QL, GL, RL, MLX, MK, D, E, DBX) and function number.
- Lever or knob style, such as Sierra or Broadway levers, or Ball, Tudor or Darrin knobs.
- Cylinder: conventional in Arrow keyway, or SFIC prep less core.
- Backset and door thickness.
- Finish, such as 26D satin chrome.
Outfitting a property? Request a quote, and schools and agencies can submit a government or school PO. Orders placed before 3:00 p.m. ET on business days ship the same day after card approval, and ground shipping is free on orders of $450+. Call 718-814-6300 to match an Arrow model.
The tables and selection notes on this page are compiled by National Lock Supply from Arrow catalogs and product listings. Last reviewed: November 2026.
Frequently Asked Questions
Who makes Arrow locks?
Arrow is a commercial lock brand of ASSA ABLOY. It makes cylindrical lever and knob locks, mortise locks, deadbolts, exit devices, door closers, cylinders and key blanks. On this page you can see the Arrow series we carry and the grade listed for each one.
Where can I find Arrow lock replacement parts?
Exit device parts such as rail assemblies, thru-bolts, end cap brackets and extension rods are in the Arrow exit device parts category. Cylinders, SFIC cores and housings, deadbolt cylinders and Arrow key blanks are listed on this brand page and in the cylinders category.
What does the number in an Arrow lock model mean?
The two digits after the series letters are the function. In the listings, 01 is passage, 02 privacy, 03 communicating, 11 entrance and 12 storeroom, and 08 is a single dummy trim. The letters after the dash describe the lever or knob, such as SR for Sierra.
What is the Arrow APL Series?
The APL Series is an Arrow cylindrical lever lock with a status indicator. The APL02-ST, for example, is listed as a Grade 1 privacy lock with a Sierra lever, 3-1/2" rose and an indicator with icons. It is used on restrooms and rooms where occupancy should be visible.
