Von Duprin 5547WDCEO Wood Door Concealed Vertical Rod Device, Exit Only

Von Duprin 5547WDCEO Grade 1 Concealed Vertical Rod Wood Door Exit Bar, Narrow Stile Crossbar, 48" Device, Exit Only, Less Trim, Hex Key Dogging, Field Reversible

Specifications

5547WDC Concealed vertical rod devices for use on single or double wood doors. Fits door stiles as narrow as 4" (102 mm).

Device functions: EO - Exit Only

Device Length: 48 Inch (4 Foot)

Crossbar height to finished floor: 36 13/16" (935 mm) at center

Lock stile case: 7 1/4" x 1 3/16" x 2 1/4" (184 mm x 30 mm x 57 mm)

Hinge stile case: 7 1/4" x 1 3/16" x 2 1/4" (184 mm x 30 mm x 57 mm)

Vertical rods-hexagon: 3/8" (10 mm) adjustable top rod

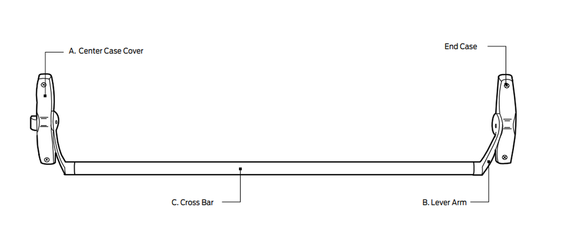

Crossbar tubing: 1" (25 mm)

Projection: Crossbar neutral – 3 3/4" (95 mm). Crossbar depressed – 2 3/8" (60 mm)

Latch bolt: 5/8" (16mm) , throw

Outside trim: Wood door - 376-WDC-L, 556NL, 550DT, 376-WDC-T x 550DT

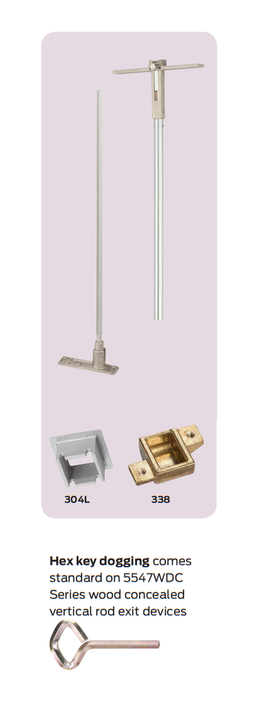

Strikes:
338 - Top
304L - Bottom, unfinished

Wood frame strikes: 472U for 1 3/4" door and 473U for 2 1/4" door

Finishes: US3, US4, US10B, US10, US26, US26D

Fasteners and sex bolts (SNB): Sex nuts and bolts for mounting are included for 1 3/4" (44 mm) and 2 1/4" (57 mm) thick doors, when specified.

Model: Von Duprin 5547WDCEO 26D, 5547WDCEO US4, 5547WDCEO US3, 5547WDCEO US10B, 5547WDCEO SPBLK, 5547WDCEO US10
