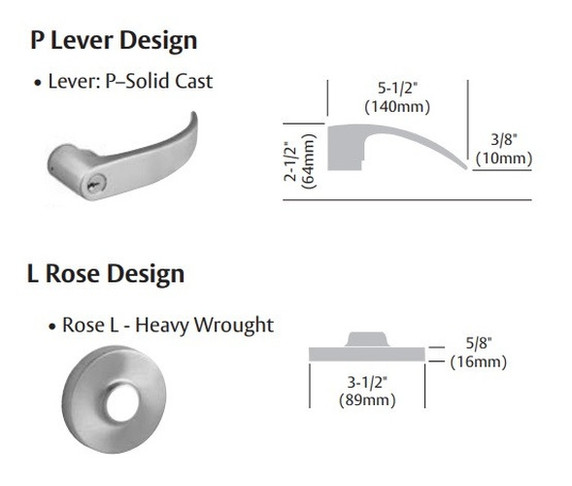

Sargent 70-10XG17 LP Utility, Asylum Or Institutional Cylindrical Lever Lock, Accepts Small Format IC Core (SFIC)
In Stock
$602.72
Price:
$1,063.00
Instant Savings
$460.28
Sargent 2870-10G17 LP Utility, Asylum Or Institutional Cylindrical Lever Lock, Accepts Small Format IC Core (SFIC)
Function Description: Utility, Asylum Or Institutional Lock - ANSI F87
• Deadlocking latch
• Both levers rigid at all times
• Latch by key either side
• Use only on rooms with more than one exit
Door Thickness: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
Backset: 2-3/4" (70mm) backset w/ 1-1/8" front (standard)
Bearing Assembly: Cast and machined stainless steel
Front: Wrought brass, bronze and stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) Fixed Bevel
Strike: 4-7/8" Curved Lip Strike (standard)
Hand: Non-handed
Latch: Stainless steel 1/2" (13mm) throw Brass
Roses: Heavy wrought brass, bronze or stainless steel
Cylinder: Small format IC core - less core
Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP
Minimum: 4-1/2" (114mm)
Door Prep: ANSI/BHMA A156.115
Warranty: Ten-year limited
Freewheeling Locked Lever Option:
• Available on all locking functions except 10G70 and 10G71
• Provides protection from vandalism and added security
• Stops in the rose prevent the lever from traveling beyond 60° in either direction
• Not available in “J” Lever Design and some options
Model: Sargent 70-10XG17 LP 26D, 70-10XG17 LP 3, 70-10XG17 LP 4, 70-10XG17 LP 10, 70-10XG17 LP 10B, 70-10XG17 LP 26
