Sargent 60-10XG17 LP Utility, Asylum Or Institutional Cylindrical Lever Lock, Accepts Large Format IC core (LFIC)

In Stock
$602.72
Price: $1,063.00
Instant Savings $460.28

FREE SHIPPING

SKU: 60-10XG17 LP 26D
Series: 10X Line - Grade 1
Function: 17 - Utility, Asylum Or Institutional
Lever Style: LP - L Rose w/ P Lever
Cylinder: 60 - Large format IC core - less core
Choose Options:
Hurry! Only left

Sargent 60-10XG17 LP Utility, Asylum Or Institutional Cylindrical Lever Lock, Accepts Large Format IC core (LFIC)

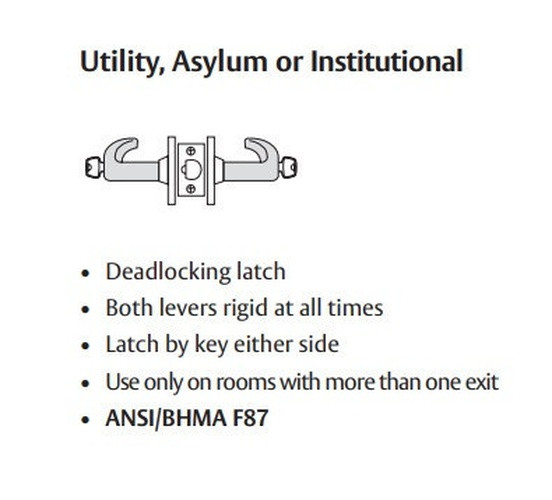

Function Description: Utility, Asylum Or Institutional Lock - ANSI F87
• Deadlocking latch
• Both levers rigid at all times
• Latch by key either side
• Use only on rooms with more than one exit

Door Thickness: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard

Backset: 2-3/4" (70mm) backset w/ 1-1/8" front (standard)

Bearing Assembly: Cast and machined stainless steel

Front: Wrought brass, bronze and stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) Fixed Bevel

Strike: 4-7/8" Curved Lip Strike (standard)

Hand: Non-handed

Latch: Stainless steel 1/2" (13mm) throw Brass

Roses: Heavy wrought brass, bronze or stainless steel

Cylinder: Large format IC core - less core

Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP

Minimum: 4-1/2" (114mm)

Door Prep: ANSI/BHMA A156.115

Warranty: Ten-year limited

Freewheeling Locked Lever Option:
• Available on all locking functions except 10G70 and 10G71
• Provides protection from vandalism and added security
• Stops in the rose prevent the lever from traveling beyond 60° in either direction
• Not available in “J” Lever Design and some options

Model: Sargent 60-10XG17 LP 26D, 60-10XG17 LP 3, 60-10XG17 LP 4, 60-10XG17 LP 10, 60-10XG17 LP 10B, 60-10XG17 LP 26
