Sargent 6042 1-1/4" 6-pin LFIC Mortise Housing w/ Disposable Plastic Core

Sargent 6042 1-1/4" LFIC Mortise Cylinder Housing

• Cylinder: Solid brass 1-5/32" diameter
• Cap: Brass, bronze and stainless steel

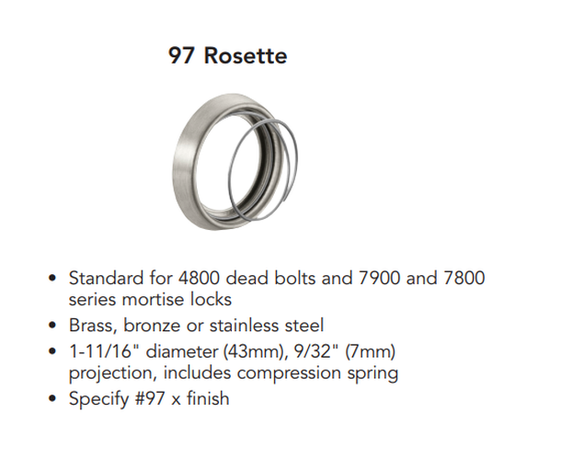

• Furnished standard with No. 97 rosette and compression ring
• Available 6300 Mortise Cams
• For Standard Cam: No Suffix is required
• Finishes: 3,4,9,15,10,10B,10BE,10BL,20D, 32,32D,BSP

Disposable Plastic Core
• During the construction phase in non restricted areas, disposable plastic cores can be used, eliminating use and distribution of the actual keys
• Once construction is near completion, the permanent keyed cores will be installed and the building secured; permanent keyed cores are ordered separately as 6300 Cores
• Disposable cores are available for Mortise, Exits and most cylindrical lock sets
• Operate with coin or flat screw driver
• One piece design allows for easy installation

Cylinder Type: LFIC Mortise Housing

Cams
101 For Adams Rite – 1850, 4700
104 For Adams Rite 4070
105 Sargent Short Cam - for inside of 78/8216 & 92 functions
106 For Schlage L No Addition
112 Wide Straight Cam
113 For 4370 Key Switch
115 For 50 Function Hotel Mortise Lock

Model: Sargent 6042 32D, 6042 32D X 101, 6042 32D X 104, 6042 32D X 105, 6042 32D X 106, 6042 32D X 112, 6042 32D X 115
