Sargent 70-46 26D 1-3/4" 6 or 7-pin SFIC Mortise Housing w/ Disposable Plastic Core

Sargent 70-46 26D 1-3/4" Mortise Cylinder Shell, 6 or 7 Pin, Standard Sargent Cam, Satin Chrome

• #46, 1-3/4" (44mm) length
• 1-5/32" (29mm) diameter housing
• Cam is permanently staked to housing

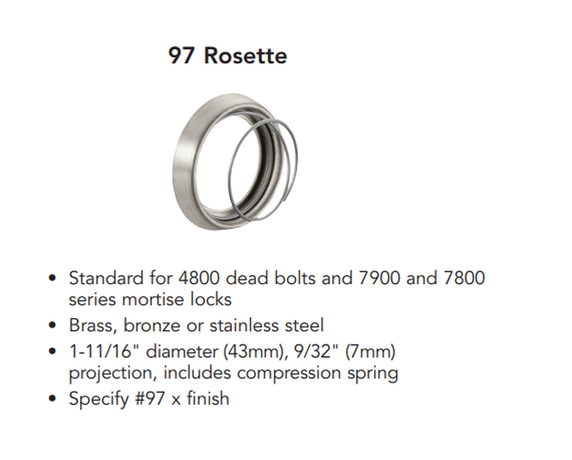

• Furnished standard with No. 97 rosette and compression ring
• Housing accepts 6 or 7 pin cores
• Only available with SARGENT off set cam
• Hotel Function not available

Cylinder Type: SFIC Mortise Housing

Number of Pins: 6/7-pin

Disposable Plastic Core
• Used for doors that do not require key locking during the construction period
• Operate with coin or flat screw driver
• Mortise and rim cylinders accepts either 6 or 7 pin permanent cores. Cylindrical lock sets ships with plastic core and 6 pin tail piece installed while the 7 pin tail piece is packed loose with the lock set
• One piece design allows for easy installation
• Only available with standard cams

Model: Sargent 70-46 26D
