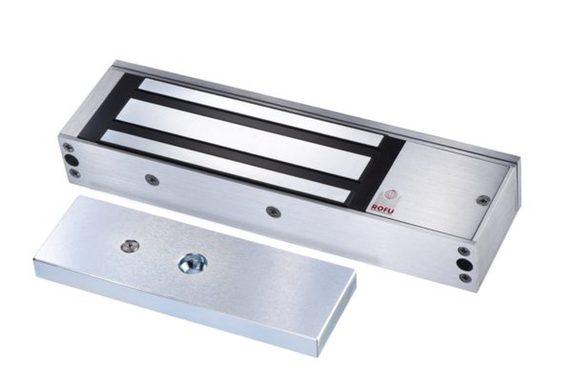

ROFU 8512-LC Maglock, Standard Single Magnet, 1200 lbs. Holding Force
In Stock
$222.75
Price:
$330.00
Instant Savings
$107.25
ROFU 8512-LC Maglock, 1200 lbs. Holding Force, Standard Single Magnet, 12/24VDC Selectable, Key Hole Mount, Aluminum
The 8500 Series Electromagnets replace 8011 Series while offering the same functionality.
All of the magnets in the range are 12/24 VDC selectable, fail-safe, suitable for indoor use, featuring anti-residual magnetism design and keyhole mounting for ease of installation.
Features
• Easy installation with keyhole mounting “slides left to right”
• Mounting hardware included to mount the maglock and the armature plate for out-swinging door
• No residual magnetism
• Fail alarm: may be released upon activation of fire alarm
• Housing: attractive, heavy duty anodized extruded aluminum housing, no need for a cover
• Mounting hardware included with each unit, for out-swinging doors
• Dual voltage 12/24 VDC field selectable
• Fail-safe: releases instantly when power is disconnected. No residual magnetism
Specification
Holding Force: 1200 lb
Voltage: 12/24 VDC
Current: 500 mA/12 VDC , 250 mA/24 VDC
Dimensions
Magnet: 10-1/2” x 1-9/16” x 2-11/16”
Armature: 7-1/4” x 5/8” x 2-3/8”
Model: ROFU 8512-LC
