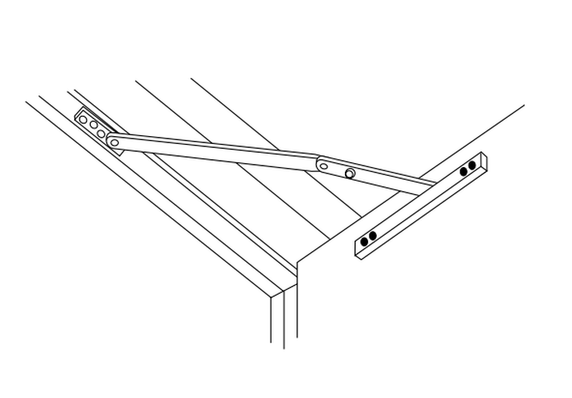

Rixson 8-336 Extra Heavy Duty Surface Mount Stop

Rixson 8-336 Extra Heavy Duty Surface Stop

Door Opening Size
Butts/Offset Pivots: 32-9/16 - 38-3/4
Center Hung Pivots: 35-1/16 - 42-1/2

Application
• Interior or exterior doors
• Single acting doors, push side mounting only
• Non-handed
• Recommended for high traffic, heavy abuse installations

Features
• Extra heavy-duty
• Double lever design
• Recommended for high traffic, heavy abuse installations
• Extra heavy shock absorber spring provides 6° compression before deadstop
• Complete screw packet with thru-bolts for door, wood and machine screws for frame.
• 110° maximum opening
• 1-3/4" minimum door thickness
• For flush mounting on the push side of the door use angle jamb bracket adapter 5458-LH or 5459-RH
• Cannot be mounted on pull side of door
• Hanging means other than standard butts or offset pivots require special templating and pricing
• Stainless steel base metal only

Compliance
• Stop function UL listed for fire door assemblies

Model: Rixson 8-336 630
