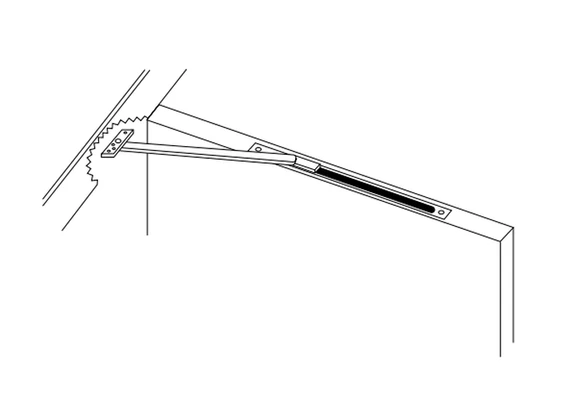

Rixson 1-336 Heavy Duty Concealed Mount Stop

Rixson 1-336 Concealed Heavy Duty Stop

Door Opening Size
Butts/Offset Pivots: 33-1/16 - 38
Center Hung Pivots: 36-1/16 - 41

Application
• Interior or exterior doors
• Single or double acting
• Non-handed
• Recommended for high traffic, heavy abuse installations

Features
• Heavy-duty
• Slide track design
• Stop function
• 1-3/4" minimum door thickness
• 110° maximum opening
• Heavy shock absorber spring provides 5-7° compression before dead stop
• Durable slider cam and shock block
• 1-3/16" square channel
• Complete screw packet for installation in wood and machine screws for door and frame
• Hanging means other than standard butts or offset pivots require special templating and pricing

Compliance
• ANSI/BHMA A156.8, Grade 1 Certified (Stop Models)
• Stop function UL listed for fire door assemblies

Model: Rixson 1-336 689, 1-336 630, 1-336 613
