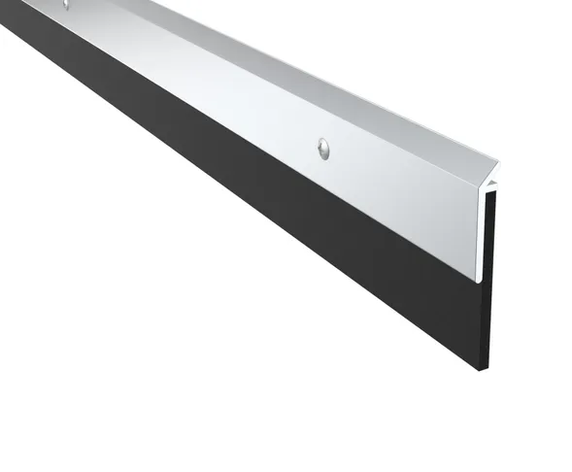

Pemko 3151CN Door Bottom Sweep w/ 1" Neoprene Insert, Satin Aluminum Finish

Pemko 3151CN Door Bottom Sweep, 1" Neoprene Insert, 1-1/4" Height, 1/4" Width, 2-1/4" Total Height with Insert, Satin Aluminum Clear Anodized Finish

**Extra Shipping Charge for Oversized Item is required in order to ensure that it will arrive undamaged**

The 3151 Series Surface Plate Door Sweep features slotted holes for easy adjustment and a neoprene synthetic rubber extrusion for effective sealing. With a recommended 1/16" gasket compression, it seals up to a 1" gap between the door and threshold or floor surface, offering outstanding resistance to abrasion, hydraulic fluids, alkalis, heat, ozone, and weather, while reducing the infiltration of light, air, wind, rain, and snow, and controlling the penetration of smoke and fumes, making it a versatile and durable solution.

Features
• Slotted holes for easy adjustment
• Recommended compression of gasket is 1/16"
• Fitted with a neoprene synthetic rubber extrusion
• Surface applied
• Seal up to a 1" the gap between the door and threshold or to the floor surface
• Not recommended in situations that involved significant gasoline or other fuel oil, kerosene, propance, or mineral oil

Benefits
• Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes
• Outstanding resistance to abrasion, hydraulic fluids, alkalis, heat, ozone, weather
• Resistant to polar substances and steam

Specifications
Base Material: Aluminum, Stainless steel

Fasteners: PHSMS #6 x 5/8"

Minimum Length: 24"

Height: 1-1/4"

Width: 1/4"

Total Height with Insert: 2-1/4"

Certifications
• GREENGUARD Gold Certified
• UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protective
• UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
• ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems

Model: Pemko 3151CN 36, 3151CN 42, 3151CN 48
