Pemko 307AV Door Bottom Sweep w/ Vinyl Insert, Mill Aluminum Finish

Pemko 307AV Door Bottom Sweep, Vinyl Insert, 1" Insert Height, 1/4" Width, 1-7/8" Total Height, Mill Aluminum Finish

**Extra Shipping Charge for Oversized Item is required in order to ensure that it will arrive undamaged**

The 307 Series Surface Plate Rubber Door Sweep is designed to insulate and prevent infiltration of moisture, fire, smoke, sound, and light. This door sweep features an Eco-V (Vinyl) or PemkoPrene seal and is fire and smoke rated. It can be used to seal up to a 1" gap between the door and threshold or floor surface. The sweep is surface mounted to the face of the door and comes with installation instructions and screws.

Features
• Slotted holes for easy adjustment
• Recommended compression of gasket is 1/16"
• Seal up to a 1" the gap between the door and threshold or to the floor surface
• GREENGUARD Gold certified, eco-friendly material
• Economical bio-based material, contains no phthalates or heavy metals
• Assists building and design teams with emissions criteria in green building rating programs
• Highly versatile, easily deployable for a variety of building applications
• Surpasses the quality and durability of traditional vinyl, resulting in a longer service life and less need for replacement
• Meets the Pemko gasketing standards for compression and tensile strength, which provides exceptional energy-saving performance
• Prevents air leakage
• Heavy metal free
• Plasticizers from renewable carbon sources, stabilizers are organic-based and zinc free
• Limited ultraviolet and weather resistance, good chemical resistance to adhesives and most mild cleaning solutions

Benefits
• Low VOC Emission
• Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes

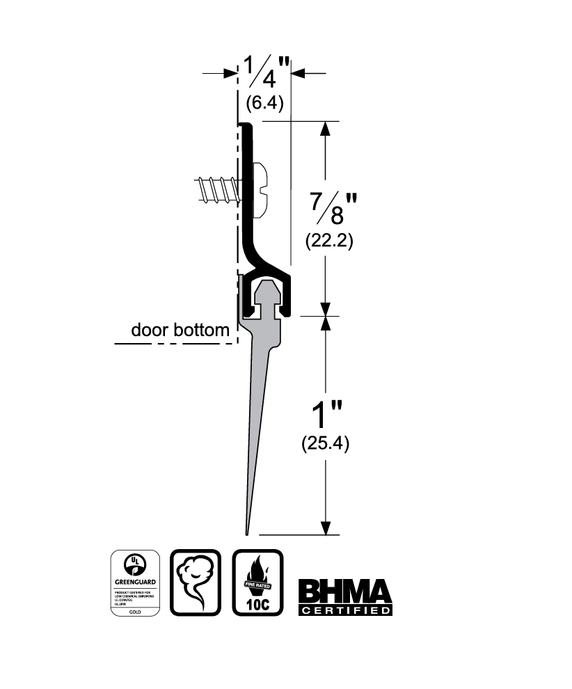

Specifications
Base Material: Aluminum

Fasteners: PHSMS #6 x 5/8"

Maximum Length: 185"

Minimum Length: 24"

Overall Height: 1-7/8"

Width: 1/4"

Insert Height: 1"

Certifications
• GREENGUARD Gold Certified
• UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
• UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
• ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems

Model: Pemko 307AV 36, 307AV 48
