Locknetics RS210 Electric Rim Strike, 1/2" Depth, Surface Mounted

Locknetics RS210 Electric Rim Strike, Surface Mounted, Field Selectable (Safe/Secure), 1/2" Depth, Rim Strike Spacer, 12/24 VDC

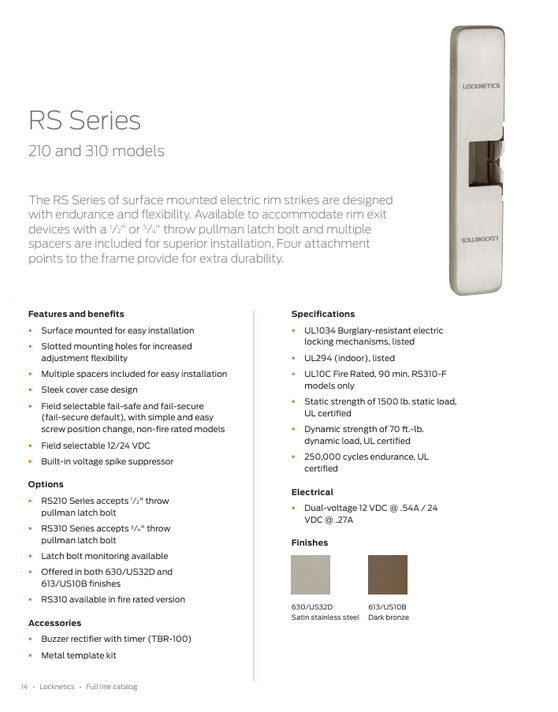

The RS Series of surface mounted electric rim strikes are designed with endurance and flexibility. Available to accommodate rim exit devices with a 1/2" throw pullman latch bolt and multiple spacers are included for superior installation. Four attachment points to the frame provide for extra durability.

RS210 Series accepts 1/2" throw pullman latch bolt.

Features and Benefits
• Surface mounted for easy installation
• Slotted mounting holes for increased adjustment flexibility
• Multiple spacers included for easy installation
• Sleek cover case design
• Field selectable fail-safe and fail-secure (fail-secure default), with simple and easy screw position change, non-fire rated models
• Field selectable 12/24 VDC
• Built-in voltage spike suppressor

Specifications
• UL1034 Burglary-resistant electric locking mechanisms, listed
• UL294 (indoor), listed
• Static strength of 1500 lb. static load, UL certified
• Dynamic strength of 70 ft.-lb. dynamic load, UL certified
• 250,000 cycles endurance, UL certified

Electrical
• Dual-voltage 12 VDC @ .54A / 24 VDC @ .27A

Model: Locknetics RS210-32D, RS210-10B, RS210-LBM-US32D, RS210-LBM-US10B
