Von Duprin 6300 Surface Mount Electric Strike, for Rim Exit Devices

Von Duprin 6300 32D Grade 1 Electric Strike, Fail Secure (Electrically Unlocked) 12/24 VDC, 9" x 1-3/4" Faceplate, Fire Rated, For use with Rim Exit Devices on Single Doors or Double Doors with Mullion, Hollow Metal, Aluminum, or Wood Frame, Satin Stainless Steel Finish

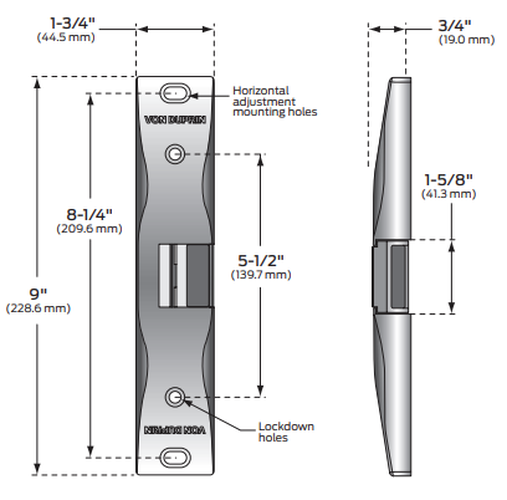

Latchbolt throw: 3⁄4" - Face plate length: 9" - Projection: 3⁄4" - Lockset: Rim exit device - Number of doors: Single or pair with mullion - Frame type: Hollow metal, aluminum and wood

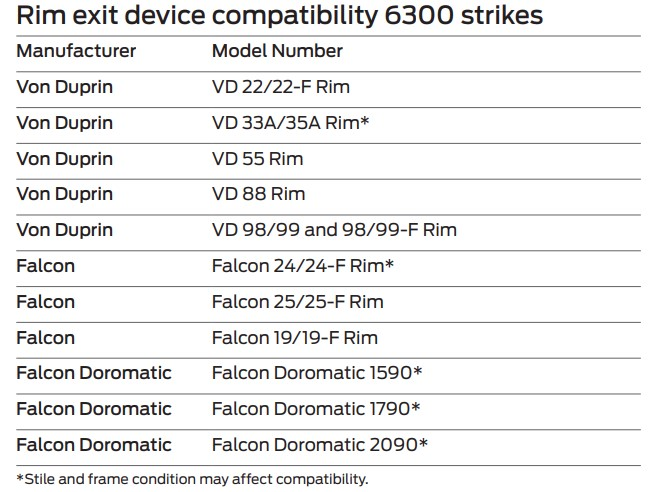

Application notes Surface mounted electric strike ideal for aftermarket applications. Strike designed for use with Von Duprin 98/99, however it can be used with most rim exit devices.

Amp Draw: Amp Draw 500mA at 12VDC, 240mA at 24VDC

Standard features
• Designed for use with rim exit devices
• Heavy-duty stainless steel construction in BHMA 630 satin finish
• Surface mounted - requires no alteration or cutting to existing frame
• Field selectable voltage 12VDC or 24VDC
• Plug-in voltage connectors included for ease of installation and removal during strike servicing
• Non-handed design provides greater flexibility
• UL 10C 3-hour fire-rated (fail secure only)
• UL 1034 listed for burglary-resistant electric door strikes
• UL 294 listed for access control system
• Dynamic strength 70 ft-lbs
