Kaba Ilco 7075GA10-KA2 Rim Cylinder with Screw Cap, Sargent LA Keyway, Keyed Alike in Pairs
$13.23
Price:
$18.15
Instant Savings
$4.92

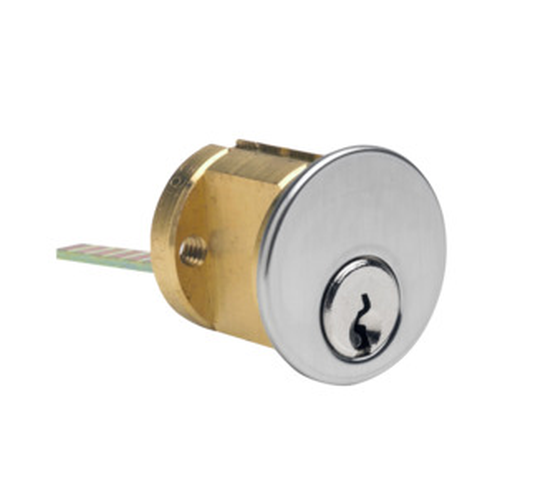

Kaba Ilco 7075GA10-KA2 Rim Cylinder with Screw Cap, 5-Pin, Sargent LA Keyway, Keyed Alike in Pairs
Ilco Rim Cylinders are machined from solid brass bar stock, engineered and manufactured to OEM specifications. Master Key and Grand Master Key quality, and are re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications
Rim Cylinders are used on 1 3/8" (35mm) – 2 1/4" (57 mm) thick doors.
Cylinder Type: Rim Cylinder
Num Pins: 5
Standard Keyway: Sargent LA
Cylinder Tailpiece Length: 2-3/8 Inch
Cylinder Tailpiece Number: 862B
• 31 keyways
• Screw cap design
• 1 1/8" (28.6mm) Length
• Includes rigid tailpiece installed and lazy action tailpiece in box
• Includes trim ring, mounting plate, and break off screws
• Horizontal or vertical tailpiece
• Factory master keying/construction master keying available
Model: Kaba Ilco 7075GA10-26D-KA2, 7075GA10-03-KA2, 7075GA10-04-KA2, 7075GA10-05-KA2, 7075GA10-29-KA2, 7075GA10-46-KA2, 7075GA10-26-KA2
