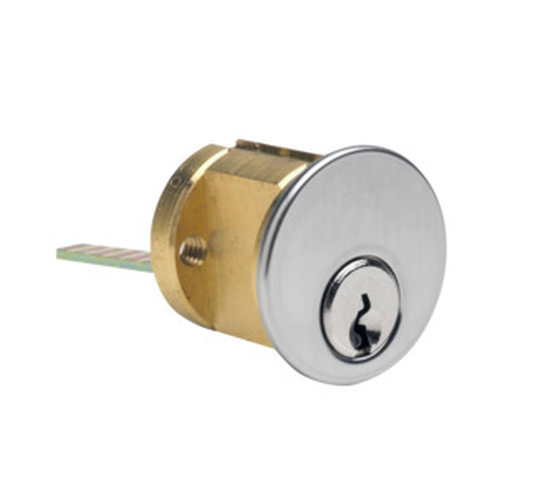

Kaba Ilco 7076SC10-KA2 Rim Cylinder with Screw Cap, Schlage C Keyway, Keyed Alike in Pairs

Kaba Ilco 7076SC10-KA2 Rim Cylinder with Screw Cap, 6-Pin, Schlage C Keyway, Keyed Alike in Pairs

Ilco Rim Cylinders are machined from solid brass bar stock, engineered and manufactured to OEM specifications. Master Key and Grand Master Key quality, and are re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications

Rim Cylinders are used on 1 3/8" (35mm) – 2 1/4" (57 mm) thick doors.

Cylinder Type: Rim Cylinder

Num Pins: 6

Standard Keyway: Schlage C

Cylinder Tailpiece Length: 2-3/8 Inch

Cylinder Tailpiece Number: 862B

• 31 keyways
• Screw cap design
• 1 1/8" (28.6mm) Length
• Includes rigid tailpiece installed and lazy action tailpiece in box
• Includes trim ring, mounting plate, and break off screws
• Horizontal or vertical tailpiece
• Factory master keying/construction master keying available

Model: Kaba Ilco 7076SC10-26D-KA2, 7076SC10-03-KA2, 7076SC10-04-KA2, 7076SC10-29-KA2, 7076SC10-46-KA2, 7076SC10-26-KA2
