Falcon T581BD Q Storeroom Cylindrical Lever Lock, Accepts Small Format IC Core, Quantum Style

Falcon T581PD Q Storeroom Cylindrical Lever Lock, Accepts Small Format IC Core
Function Description: Storeroom lock - ANSI NO.F86
Latch bolt operated by lever/knob inside or key outside. Outside lever/knob is inoperable.
Inside always free for immediate egress.

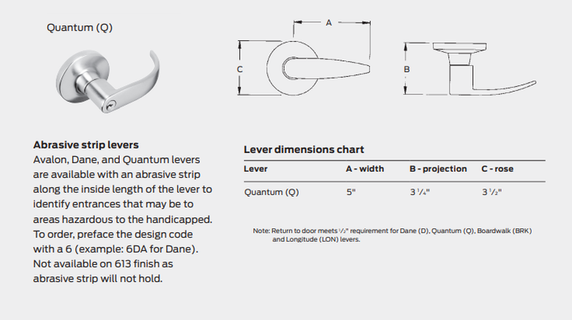

Lever Style: Quantum Lever

Series: T Series - Grade 1, Extra Heavy-Duty

Door Thickness: 1-3/4" to 2-1/4" standard.

Backset: 2-3/4" standard. 2-3/8, 3-3/4" and 5" also available

Handing: Non-handed

Latches: 1/2" bolt projection, UL listed with square corner latch faceplate 2-1/4" x 1-1/8" standard.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.

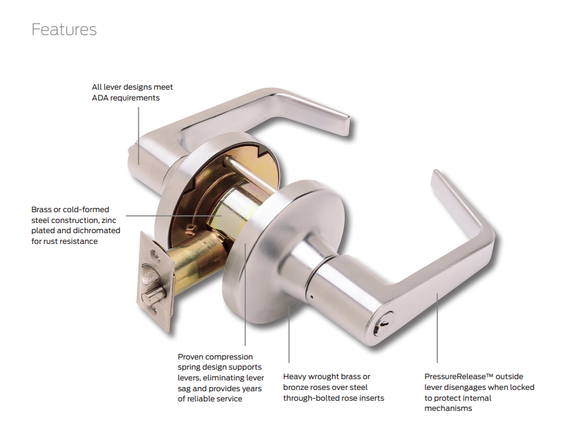

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel. compression spring design supports levers, eliminating lever sag and providing years of reliable service.

Attachment: Lock chassis secured to door by threaded mounting nuts. Preassembled outer trim and inner spindle assembly are through-bolted over chassis using two (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.

Cylinder: 6- or 7-pin Small Format Interchangeable Core (SFIC) cylinders.

Keyway: “A” keyway standard on SFIC cylinders.

Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.

Screws: Furnished with combination screws for use in wood or metal doors and frames.

ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 1.

UL: Listed for 3-hour fire door, A label.

PressureRelease™ outside lever disengages when locked to protect internal mechanisms

Model: Falcon T581BD Q 626, T581BD Q 605, T581BD Q 613, T581BD Q 625
