Falcon W581BD Q Storeroom Cylindrical Lever Lock, Accepts Small Format IC Core w/ Quantum Style

Falcon W581BD Q Storeroom Cylindrical Lever Lock, Accepts Small Format IC Core

Function: Storeroom - ANSI F86
Latch bolt operated by lever inside or key outside.
Outside lever is inoperable.
Inside always free for immediate egress.

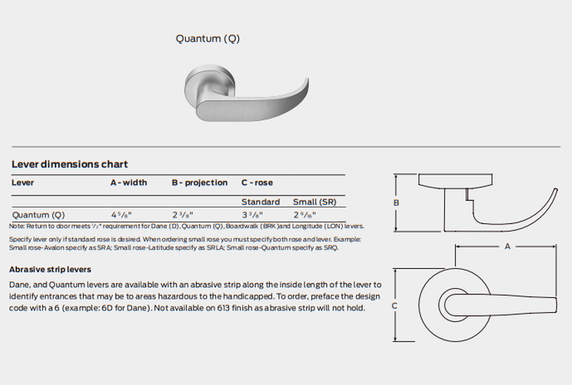

Lever Style: Quantum Lever

Series: W - Grade 2, Medium-Duty

ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: Listed for 3-hour fire door, A label.

Rose size: Standard rose diameter 3-3/8".

Door thickness: 1-3/8" to 1-3/4" standard.

Backset: Standard rose - 2-3/4" backset.

Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Handing: Locks are non-handed.

Cylinder: 6- or 7-pin Small Format Interchangeable Core (SFIC) cylinders.

Keyway: “A” keyway standard on SFIC cylinders.

Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted. Levers are pressure cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches: 1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies.
Latches have selfadjusting fronts to accommodate beveled or flat doors.
Standard rose: 2-3/8" backset with 1" x 2-1/4" latch face or 2-3/4" backset with 1-1/8" x 2-1/4" latch face.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.

Screws: Furnished with combination screws for use in wood or metal doors and frames.

Model: Falcon W581BD Q 626, W581BD Q 605, W581BD Q 606, W581BD Q 612, W581BD Q 613, W581BD Q 625
