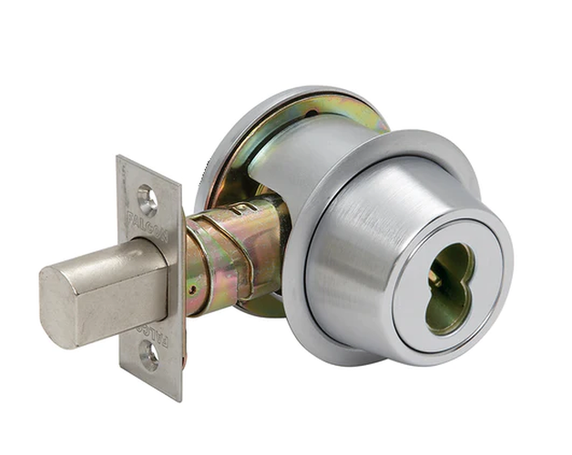

Falcon D221B Single Cylinder x Rose Deadbolt, Accepts SFIC

Falcon D221B Grade 2 Single Cylinder x Rose Deadbolt, Small Format IC Core Prep, Less Core

Function: D221 - Single Cylinder x Rose - ANSI E0162
• Outside Function: Deadbolt thrown or retracted by key only.
• Inside Function: Blank rose inside. Bolt automatically deadlocks when fully thrown.

Specifications
Door thickness: 1 3⁄8" to 2 1⁄4" standard conventional cylinder.

Backsets: 2 3⁄8"- 2 3⁄4" adjustable deadbolt.

Attachment: Locks are solidly attached to the door by 1⁄4" heat-treated steel bolts. These bolts pass through a steel plate (D211, D221 and D241) or the inner cylinder housing (D231) and thread directly into the back of the outer cylinder housing.

Handing: Non-handed. May be used in right hand or left hand doors swinging in or out.

Cylinders: 6-pin Small Format Interchangeable Core (SFIC)

Exposed trim: Wrought brass or bronze reinforced with steel insert.

Deadbolts: Deadbolt locks are furnished with deadbolts which have a full 1" projection. Housed within the deadbolt is a free-turning, 1⁄4” thick, hardened steel, saw-resistant roller. Furnished standard with 2 3⁄8"- 2 3⁄4" adjustable backset and 1 1⁄8" x 2 1⁄4" faceplate. D200 bolt is cast zinc.

Strikes: 2 3⁄4" x 1 1⁄8" lipless standard. ANSI 4 7⁄8" x 1 1⁄4" lipless

Screws: Furnished with wood/machine screws for use on wood or metal doors or frames

ANSI/BHMA: A156.5, 2001, Grade 2.

Functions: 8 commercial functions available.

Finishes: 605, 606, 612, 625, 626, 613

Model: Falcon D221B 626, D221B 605, D221B 606, D221B 613, D221B 625
