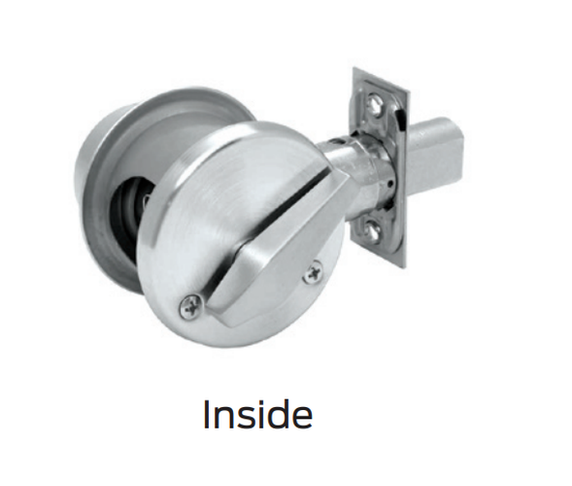

Falcon D141B Single Cylinder x Thumbturn Deadbolt, Accepts SFIC

Falcon D141B Grade 1 Single Cylinder x Thumbturn Deadbolt, Small Format IC Core Prep, Less Core

Function: D141 - Single Cylinder x Thumbturn - ANSI E2151
• Outside Function: Deadbolt thrown or retracted by key from outside.
• Inside Function: Deadbolt thrown or retracted by turn. Bolt automatically deadlocks when fully thrown.

Specifications
Deadbolt: 1-1/8” x 2-1/4”, Square corner faceplate, 1” housing diameter, 1” throw

Strike: 1-1/8” x 2-3/4”, lipless, with box

Handing: Locks are non-handed.

Reinforcement: Metal dust box reinforcer with three - 3” screws

Trim Ring: 1” Wrought brass or bronze, reinforced with security insert

Door Range: 1-3/8” - 1-3/4” standard

Finishes: 605, 606, 612, 625, 626

Certifications
BHMA-ANSI A156.5, 2001, Grade 1 auxiliary lock, Available UL
Listed for 3-Hour fire door

Model: Falcon D141B 626, D141B 605, D141B 606, D141B 613, D141B 625
