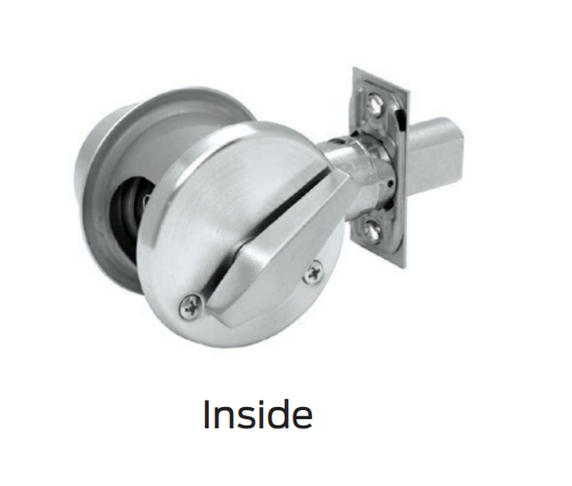

Falcon D141P Single Cylinder x Thumbturn Deadbolt

Falcon D141P Grade 1 Single Cylinder x Thumbturn Deadbolt

Function: D141 - Single Cylinder x Thumbturn - ANSI E2151
• Outside Function: Deadbolt thrown or retracted by key from outside.
• Inside Function: Deadbolt thrown or retracted by turn. Bolt automatically deadlocks when fully thrown.

Specifications
Deadbolt: 1-1/8” x 2-1/4”, Square corner faceplate, 1” housing diameter, 1” throw

Strike: 1-1/8” x 2-3/4”, lipless, with box

Cylinder: 6-Pin, Solid brass, Keyed 5-Pin, Falcon G Keyway, Keyed different (KD)

Keys: Two, Nickel silver cut keys per lock, Falcon G Keyway

Handing: Locks are non-handed.

Reinforcement: Metal dust box reinforcer with three - 3” screws

Trim Ring: 1” Wrought brass or bronze, reinforced with security insert

Door Range: 1-3/8” - 1-3/4” standard

Finishes: 605, 606, 612, 625, 626

Certifications
BHMA-ANSI A156.5, 2001, Grade 1 auxiliary lock, Available UL
Listed for 3-Hour fire door

Model: Falcon D141P 626, D141P 605, D141P 606, D141P 613, D141P 625
