Sargent Parts and Accessories
Sargent exit device parts keep 80 Series panic bars working without replacing the whole device. Find springs such as the 97-0425 hub spring and 98-0028 latchbolt spring, chassis and rail assemblies, end caps, dogging kits, top and bottom strikes, vertical rod kits and ET trim parts. For complete devices see Sargent 80 Series exit devices.
How to identify your Sargent exit device before ordering parts
Start with the device model number, because most Sargent parts are made for a specific device family. It is printed on the device or on the original order, and it tells you the type: in the part listings, 8800 is used for rim devices, 8700 and 2727/3727 for surface vertical rod devices, 8400 and 8600 for concealed vertical rod devices, and 8300, 8900 and 9900 for mortise devices. A 12- prefix on the model (for example 12-8700) marks the fire rated version, and several parts are listed separately for it. Also note the door width, the hand and the finish code, such as 32D (satin stainless steel) or 26D (satin chrome).
Sargent 80 Series parts by assembly
The catalog groups Sargent exit device parts by the assembly they belong to. Use the table to narrow the search, then match the exact part number on the listing.
| Assembly | Example part numbers | Fits (as listed) |
|---|---|---|
| Springs | 97-0425 hub spring, 98-0028 latchbolt spring, 68-1193 upper link spring, 68-0236 connecting arm spring | 80 Series devices; 700 Series ET |
| Levers and pins | 68-0237 / 68-0238 latchbolt levers, 68-1367, 68-1644 and 68-1645 lift levers, 68-0229 pivot pin, 68-1155 latch retraction lever | See listing for hand |
| Chassis and case assemblies | 68-2107 8828, 68-2172 / 68-2173 8900, 68-4569 NB-8700, 68-5069 MD8600, 68-4557 top case (8700) | By device and hand (LHR or RHR) |
| Rail assemblies and inserts | 68-2695 / 68-2696 cam lockdown rails, 68-3780 F-wide, 68-0549 to 68-0554 rail inserts | By rail size letter E, F, G or J |
| End caps and covers | 565 metal end cap kit, 665 flush end cap, 68-0561 Lexan end cap, 68-0434 (20 Series) | 80 Series and 20 Series |
| Strikes | 640, 644, 646, 649, 654, 655, 624, 606, 657, 642, C908, 815 | By device; most in black |
| Vertical rods and extensions | 691B, MD691T, 670B, 670T, MD660T, 570, 571-6, 571-12, 68-4209 to 68-4211 | 8400, 8600, 8700, 9700, 2700, 3700 |
| Dogging and keys | 68-2596 dogging kit, 816 cylinder dogging kit, 97-0001 dogging key | 80 Series |
| Mortise lock bodies | 910, 913, 915, 928, 963 | 83, 89 and 99 mortise exit devices |

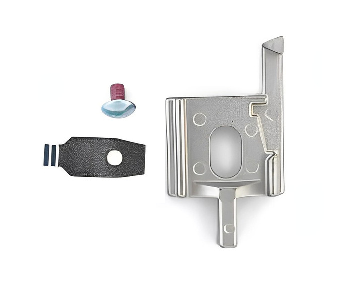

| ET trim parts | 730-1, 730-2, 730-3, 730-7 spindle retrofit kits, 607-1, 607-2 locking slide kits, 68-1208 ET cam | 700 Series ET trim by door thickness |
Strikes for Sargent exit devices
Choose the strike by device and by door: rim, surface vertical rod, concealed vertical rod and mortise devices all use different strikes. The 649 is listed as the standard strike for 2828, 3828, 5100, 5800 and 8800 rim devices, the 640 is the top and bottom strike set for AD8400 and AD8600 concealed rod devices, the 646 top strike and 624 or 655 bottom strikes go with 2727, 3727, 8700 and 9700 surface rod devices, and the 642, C908 and 815 strikes are listed for mortise devices. The 644 is a surface double door strike, and the 98-0036 shim adjusts the 649.
Vertical rod exit device parts
Vertical rod devices need rods, bolts and connectors cut to the door height. For concealed rod devices (AD/MD 8400 and MD/WD 8600), the catalog has the 691B bottom rod kit, the MD691T top rod and bolt kit and the MD660T top rod kit. For surface rod devices (8700, 9700), there are the 670B bottom rod kit and 670T top rod kit, top and bottom case assemblies, and the 571-6 and 571-12 rod extension kits for 2700, 3700 and 9700. The 570 rod connector kit joins vertical rods, and 68-4209, 68-4210 and 68-4211 are 12", 18" and 24" extension rod assemblies.
Rail assembly sizes: E, F, G and J
Sargent rail assemblies and inserts are sized by a letter that matches the door width. The listings give these ranges: E for 24" to 32", F for 33" to 36", J for 37" to 42" and G for 43" to 48". Rails are also listed as wide or narrow stile, with cam lockdown versions, so read the old rail label or measure the door before ordering.
Using the Sargent 80 Series parts manual
The fastest way to confirm a part number is the exploded diagram in the manufacturer's manual. We host the Sargent 80 Series parts manual (PDF) and the Sargent 80 Series catalog (PDF) on our product pages. Find the assembly in the diagram, note the part number and search it in this category.
Most requested Sargent exit device parts
The Sargent parts our customers look up most often right now:
- Sargent 98-0028 Latchbolt Spring
- Sargent 97-0425 Hub Spring
- Sargent 640 Top and Bottom Strike for AD8400, AD8600
- Sargent 571-6 6" Rod Extension Kit
- Sargent 68-3212 Rail Assembly F-Wide
Shop by model: Sargent 68-2596 dogging kit.
Related categories: Sargent exit devices, exit device trims, panic exit devices and Sargent 80 Series exit devices.
What to have ready when ordering Sargent exit device parts
- Full device model number, including any 12- prefix and the function suffix.
- Device type: rim, surface vertical rod, concealed vertical rod or mortise.
- Door width (rail size letter) and door height for rods.
- Hand (LHR or RHR) for chassis, levers and some strikes.
- Finish code, such as 32D, 26D or black for strikes.
- The part number from the parts manual, if you have it.
Need help with installation? Our panic bar installation guide walks through the full device.
Servicing a building full of devices? Request a quote for quantity pricing, and schools and agencies can submit a government or school PO. Orders placed before 3:00 p.m. ET on business days ship the same day after card approval, and ground shipping is free on orders of $450+. Send us your device model and we will help match the part: call 718-814-6300.
The tables and selection notes on this page are compiled by National Lock Supply from the Sargent parts manual, catalogs and product listings. Last reviewed: November 2026.
Frequently Asked Questions
What does the 12- prefix mean on a Sargent exit device?
In the Sargent part listings, the 12- prefix marks the fire rated version of a device, such as 12-8700 or 12-2828. Several parts, including case assemblies, chassis and thru-bolt packs, are listed separately for 12- devices, so include the prefix when you order.
How do I replace a broken Sargent dogging key or dogging kit?
For hex key dogging, the 97-0001 is the Sargent dogging key. For the dogging mechanism itself, the 68-2596 dogging kit is listed, and the 816 kit converts 80 Series devices to cylinder dogging, which uses a key cylinder instead of a hex key to hold the latch retracted.
Do Sargent parts fit other brands of exit devices?
No. Sargent parts are made for Sargent devices and are not interchangeable with Von Duprin, Corbin Russwin or other brands. Even within Sargent, parts are specific to the series and device type, which is why the model number matters when you order.
What are the 730 ET spindle retrofit kits for?
The 730 kits are spindle retrofit kits for Sargent 700 Series ET trim, sold by door thickness: the listings show 730-1 for 1-3/4" doors, 730-2 for 2" doors and 730-3 for 2-1/4" doors, with 730-7 for 700-8 Series trim on 1-3/4" doors.
