Norton Door Closer Parts
Norton door closer parts let you repair a Norton closer instead of replacing it: arm assemblies such as the 7701-1 regular arm, Unitrol arms, soffit plates, drop plates, transom brackets like the 2019L, covers, the 1601LAP body only and sex nut packs. Complete closers are in Norton door closers.
Identify your Norton closer series
Most Norton parts are listed for one or more closer series, so read the series on the closer body or cover first. The parts in our catalog fit the 1600, 7500, 8000 and 9300BC Series, the 78-B/F Series traditional closers and the 410 Series, and many arms fit several of them at once, for example arms listed for 1600, 7500, 8000 and 9300BC. If your closer is an older model, such as a 149A, send us the model and photos and we will check what fits.
Norton parts by type
| Part type | Models in the catalog | Fits (as listed) |
|---|---|---|
| Regular and top jamb arms | 7701-1 regular, 7701-3 regular hold open, 7701-1A J, 7701-1B JL, 7701-3A J, 7701-3B JL top jamb, 7780-1 low profile | 1600, 7500, 8000, 9300BC |
| Parallel arms | 7701-8 hold open parallel, PR7701-5 parallel rigid, 9328H hold open bracket | 1600, 7500, 8000; 9328H for 9300BC |
| Unitrol arms | 6100-11, 6100-13, 6100-14 (non-hold open), 6100-3, 6100-4 (hold open), J6100-4, J6100-7, J6400-4 top jamb | By door width or frame depth |
| Closer Plus arms | 6870T-8, CPS6870T-8 thumbturn hold open, 6770-5 non-hold open | 1600, 7500, 8000 |
| Slide track arms | 7701ST-1T, 7701ST-3T pull side slide track, 7701ST-1A | Pull side, hold or non-hold open |
| Soffit and drop plates | 1618, 1618A, 1628H, 2018S soffit plates; 1687, 1688, 8146, 8148, 8158, 410RDP drop plates | By series and frame condition |

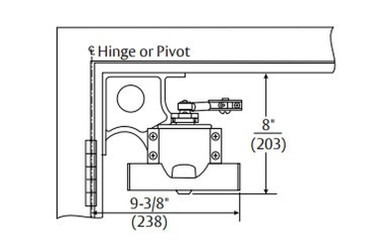

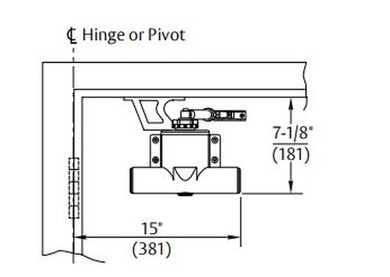

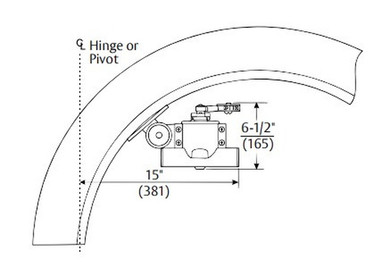

| Brackets | 2019L, 2022 transom angle brackets; 6890, 6891, 6190, 6191; 1-B/F, 2-B/F, 5-B/F, 6-B/F, 8-B/F | 1600, 7500, 8000, 78-B/F |
| Covers and backplates | 1600P, 8400P, 8400M, 8200P covers; 8445, 8545 backplates; 8549 drop plate kit | 1600 and 8000 Series |
| Bodies, fasteners, paint | 1601LAP body only; SN-134, SNB134-38 sex nuts; 1A, 5S, 6SB spray paint | 1601; 1-3/4" doors |
Norton door closer arms

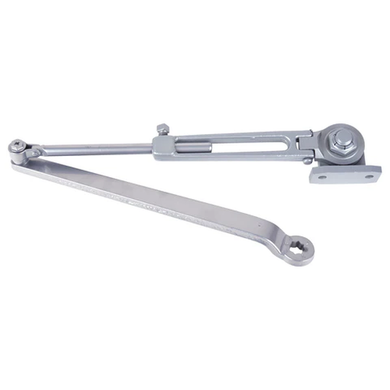

The arm is the most replaced part of a closer. Choose it by mounting and function: regular arms (7701-1, 7701-3) mount on the pull side, top jamb arms (7701-1A, 7701-1B and the 7701-3A, 7701-3B hold open versions) mount on the frame on the push side, and parallel arms (7701-8, PR7701-5) mount on the push side of the door. The J and JL suffixes are two top jamb arm versions; check the listing and the closer's template to confirm.
Unitrol arms: closer and stop in one
A Unitrol arm combines the closer arm with an overhead stop, and Norton sizes it by door width. The catalog lists non-hold open Unitrol arms for 28" to 32" (6100-11), 33" to 41" (6100-13) and 42" to 48" (6100-14) doors, hold open versions for 33" to 41" (6100-3) and 42" to 48" (6100-4), and top jamb Unitrol arms for frame depths of 2-1/8" to 3-1/4" (J6100-4, J6100-7) and 3-3/8" to 4-1/4" (J6400-4). The 6190 and 6191 are Unitrol soffit support and wide frame reinforcing kits.
Drop plates, soffit plates and transom brackets

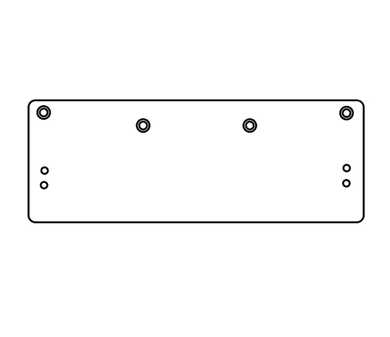

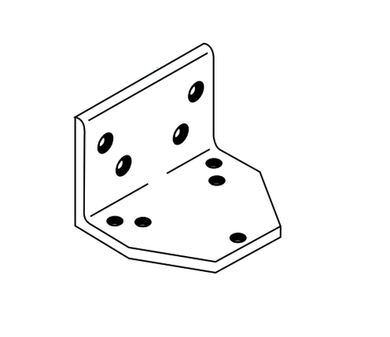

These plates solve mounting problems. Drop plates lower the closer where the top rail is narrow or the ceiling is low, such as the 1687 low ceiling and 1688 narrow top jamb drop plates for the 1600 Series and the 8146, 8148 and 8158 for the 8000 Series. Soffit plates (1618, 1618A, 1628H, 2018S) mount the arm under a deep frame soffit. The 2019L and 2022 angle brackets mount the closer on a flush rabbeted or flush transom.
Replacing a Norton closer body
If the closer leaks oil or will not control the door, replace the body and keep a good arm. The Norton 1601LAP is listed as a multi-sized body only for the 1601 Series. Match the series and the arm before reusing it. Covers such as the 1600P and 8400P finish the new body.
Most requested Norton parts
The Norton parts our customers look up most often right now:
- Norton 2019L Angle Bracket, Flush Rabbeted Transom
- Norton 2022 Angle Bracket, Flush Transom
- Norton 1601LAP Body Only for 1601 Series
- Norton 7701-8 Hold Open Parallel Arm Assembly
Shop by model: 7701-1 regular arm.
Related categories: Norton door closers, LCN door closer parts and commercial door closers.
What to have ready when ordering Norton parts
- Closer series on the body or cover (1600, 7500, 8000, 9300BC, 78-B/F, 410).
- Mounting: regular, top jamb or parallel arm, and push or pull side.
- Function: hold open or non-hold open, with or without stop.
- Door width for Unitrol arms, frame depth for top jamb arms.
- Finish, such as 689 aluminum, 690 dark bronze or 693 black.
Servicing many closers? Request a quote, and schools and agencies can submit a government or school PO. Orders placed before 3:00 p.m. ET on business days ship the same day after card approval, and ground shipping is free on orders of $450+. Send us the closer series and a photo: call 718-814-6300.
The tables and selection notes on this page are compiled by National Lock Supply from Norton catalogs and product listings. Last reviewed: November 2026.
Frequently Asked Questions
Who makes Norton closers?
Norton door closers are made under the Norton Rixson brand of ASSA ABLOY. The parts in this category are for Norton surface closers such as the 1600, 7500, 8000, 9300BC and 78-B/F Series, and each listing names the series it fits.
What are the parts of a door closer called?
A surface closer has a body (the cylinder with oil and spring), an arm that links it to the door or frame, a cover, and mounting parts such as drop plates, soffit plates, brackets and sex nuts. Norton lists each one separately for its closer series.
What are some common problems with door closers?
Common problems are oil leaks from the body, a door that slams or closes too slowly, a bent or broken arm, and a closer that has pulled loose from a weak frame or door. Leaks usually mean replacing the body, while slamming or slow closing is often fixed by adjusting the valves.
Do you have parts for an old Norton 149A closer?
The parts in this category are listed for the 1600, 7500, 8000, 9300BC, 78-B/F and 410 Series. For older models such as the 149A, send us the model and photos of the closer and arm, and we will check whether a part or a replacement closer is the better option.
