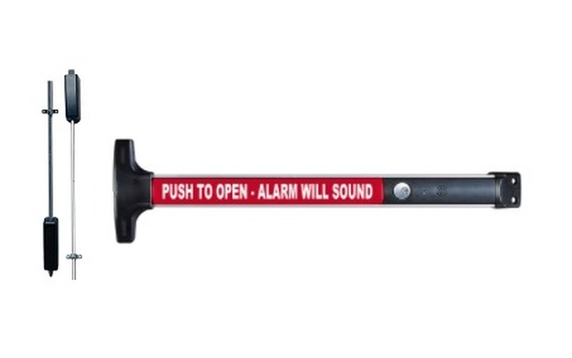

Detex V50 EB CD 96 Value Series Surface Vertical Rod Exit Device, Cylinder Dogging, Surface Strike

Detex V50 EB CD 96 Value Series Wide Stile Surface Vertical Rod Exit Device, w/ Battery Operated Alarm, Cylinder Dogging, 96 Surface Strike

Technical Information
Door Stile: Fits 3-1/2" stile doors (Std.)

Fasteners: Machine and Self- Drilling Screws standard

Door Width: 36” wide door (3’)

Door Height: 84” high door

Finish: 628 - Satin Aluminum, 711 - Satin Black

Dogging: Cylinder  Dogging

Benefits

• Priced to be the best value for durable and attractive loss prevention panic hardware
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Fits almost any door in any décor
• Outside trims are easily changed or rekeyed without removing device from door
• Angled end cap deflects damage away from device

Features

• Stainless steel 3/4" deadlocking top latch bolt
• Bottom drop bolt, 5/8" dia. x 5-5/8" long secures into strike plate
• Field sizeable
• 1/8 turn dogging
• Ribbed aluminum rail extrusion
• Impact resistant ABS and anodized surfaces
• Modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims available
• Handed, field reversible

Detex Limited Warranty
10 Year Mechanical/3 year Electrical
Limited Manufacturer’s Warranty

Exit Alarm With Battery (EB)
The Exit Alarm with Battery (EB) option is designed for primary and secondary exits that require an alarmed
panic device. The 100dB alarm will sound when someone attempts to exit, alerting management to the
unauthorized exit. Available in various configurations, the EB provides security while meeting all life safety
concerns, offering an exceptional value.

Electric Options: Alarm Kit Battery Powered

Technical Information
• Door Types - Wood, Hollow Metal, Fiberglass
• Door Thickness - Fits standard 1-3/4” - 2-1/4”
• Single Door Stile - Fits 3-1/2” minimum stile doors with 99 surface strike (Std.)
• Pairs of Doors Stile - Fits 4” minimum stile doors with 99 surface strike
• Machine and Self-Drilling Screws (Std.)
• Optional Sex Nuts or Security Torx Screws available

Benefits

• Priced to be the best value for durable and attractive loss prevention panic hardware
• Reduces employee and customer theft
• Fast and easy installation saves time and money
• Durable design provides years of trouble-free protection, saving on replacement costs
• Patented mounting plate and strike locator replaces paper templates
• Fits almost any door in any décor
• Controls foot traffic, deters unauthorized exits, prevents loss and meets building code requirements
• Angled end cap deflects damage away from device

Features

• Powered by standard 9-volt battery
• Stainless steel, 3/4" deadlocking Pullman-type latch bolt
• 100 decibel alarm
• 1/8 turn cylinder dogging
• Armed and disarmed field selectable status indicator
• Heavy-duty ribbed aluminum rail extrusion
• Accommodates all types of mortise cylinders with a standard Yale cam (collar required for 7-pin IC cylinders)
• Visual and audible arming indicators
• State-of-art electronics offer reliable security and instantaneous alarm
• Field selectable key rearm or 2 min. auto rearm

Model: Detex V50 EB CD 628 96 36X84, V50 EB CD 628 96 36X96, V50 EB CD 711 96 36X84, 50 EB CD 711 96 36X96
