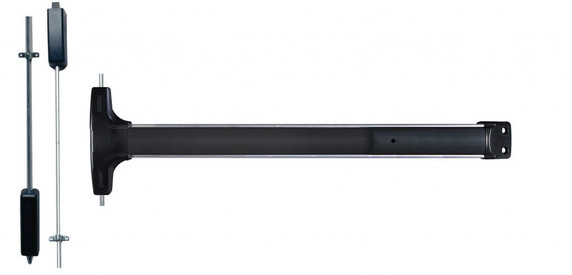

Detex V50 HD 96 Value Series Surface Vertical Rod Exit Device, Hex Dogging, Surface Strike

Detex V50 HD 96 Value Series Wide Stile Surface Vertical Rod Exit Device, Hex Key Dogging, 96 Surface Strike

Technical Information
Door Stile: Fits 3-1/2" stile doors (Std.)

Fasteners: Machine and Self- Drilling Screws standard

Door Width:
36” wide door (3’)
48” wide door (4’)

Door Height:
84” high door
96” high door

Finish: 628 - Satin Aluminum, 711 - Satin Black

Dogging: Hex Key Dogging

Benefits

• Priced to be the best value for durable and attractive loss prevention panic hardware
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Fits almost any door in any décor
• Outside trims are easily changed or rekeyed without removing device from door
• Angled end cap deflects damage away from device

Features

• Stainless steel 3/4" deadlocking top latch bolt
• Bottom drop bolt, 5/8" dia. x 5-5/8" long secures into strike plate
• Field sizeable
• 1/8 turn dogging
• Ribbed aluminum rail extrusion
• Impact resistant ABS and anodized surfaces
• Modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims available
• Handed, field reversible

Detex Limited Warranty
10 Year Mechanical/3 year Electrical
Limited Manufacturer’s Warranty

Model: Detex V50 HD 628 99 36X84, V50 HD 628 99 36X96
