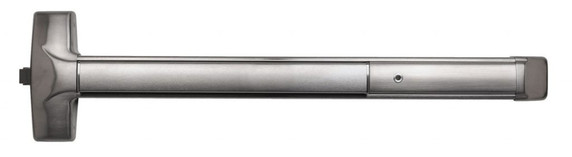

Detex 10 HD 630 99 Advantex Rim Exit Device, Hex Dogging, Surface Strike

Detex 10 HD 630 99 Advantex Wide Stile Rim Exit Device, Hex Dogging, 99 Surface Strike, Satin Stainless Steel

Technical Information
Door Types: Wood, Hollow Metal, Fiberglass or Aluminum

Door Thickness: Fits standard 1-3/4” - 2-1/4” doors

Minimum Stile: 4-5/8” with standard 99 strike

Fasteners: Machine and Self- Drilling Screws standard

Door Size: 36" Wide Door (3') - 48" Wide Door (4')

Finish: 630 - Satin Stainless Steel

Dogging: Hex Key Dogging

Benefits

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing
• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing
• Non-handed
• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging

Detex Limited Warranty
10 Year Mechanical/3 year Electrical
Limited Manufacturer’s Warranty

Model: Detex 10 HD 630 99 36, 10 HD 630 99 48
