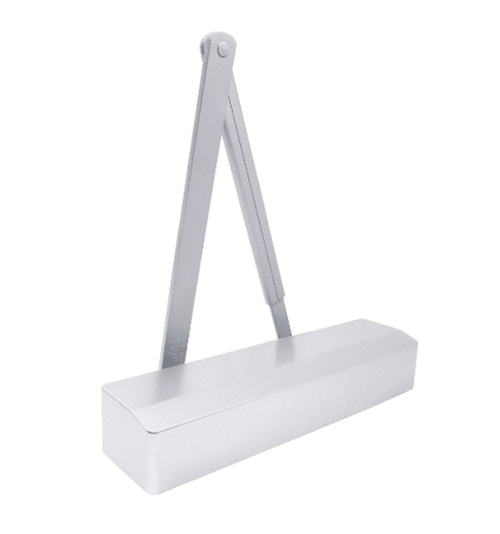

Best HD8016DA AF80P Heavy Duty Surface Closer w/ Tri Mount Flat Form Parallel Arm, Delayed Action

BEST HD8016DA AF80P Grade 1 Heavy Duty Surface Door Closer, Adjustable Size 1-6, Flat Form Arm, Tri-Pack, Pull Side, Delayed Action, Non-Handed

Versatile, durable, and reliable, featuring modern styling for institutional or high-traffic commercial applications. BEST HD8000 series, Grade 1 hydraulic surface closers are housed in corrosion-resistant aluminum with a hardened pinion/piston providing toughness and high-strength. The arm hub is made from forged steel. Standard on the HD8000 series closers are backcheck with two adjustment valves and adjustable spring size options from 1 - 6 or 5 - 6. The HD8000 series closers are ideal for a variety of heavy-duty, as well as barrier-free applications.

Flat Form Arm
AF80P (HD8000 only) — Parallel flat form arm complete (Tri-Pack) (0" - 4" [0 mm -102 mm] reveal). P80 included.

Features
• Available with fully adjustable spring sizes 1 -6+50%. Size 1 (5 lb opening force) meets interior barrier-free AD requirements.
• May be used on doors up to 48" wide interior (42" wide exterior) and up to 180 lb.
• For use on exceptionally wide, tall, or heavy doors.
• Non-handed for regular, top jamb, and parallel arm applications.
• Backcheck (BC) valve (standard) provides adjustable-intensity hydraulic cushioning, preventing uncontrolled door opening to protect door and frame during abusive or abrupt opening.
• AVB - advanced variable backcheck range on parallel arm applications. Valve is accessible with the closer installed.
• Full adjustment using BC, Sweep and Latch valves standard.
• DA option with separate independent valve to allow for unobstructed passage through opening.
• Full plastic cover standard. Lead lined as well as full metal covers available.
• All tamper-resistant (hex key) valve adjustments.
• Standard components required for three mounting configurations (Reg., TJ, PA).
• SNDTPK90 - Standard fasteners include separate self-drilling and self-tapping and sex nuts for 1-3/4" thick doors and machine screws.
• A variety of specialty arm options.
• Full complement of optional plates and brackets available for special applications

Certification
• ANSI/BHMA A156.4 Grade 1 certified
• UL and CUL listed
• Meets UL10C for positive pressure
• Meets ANSI/BHMA A117.1 and ADA for barrier-free accessibility.

Model: Best HD8016DA AF80P 689, HD8016DA AF80P 693, HD8016DA AF80P 695
