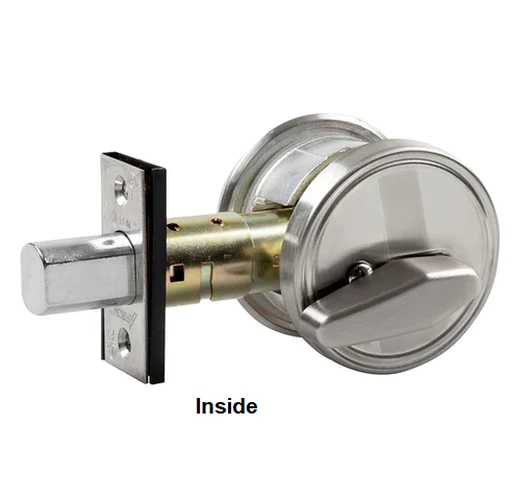

Arrow DBX61 Grade 2 Single Cylinder Deadbolt

Arrow DBX61 Grade 2 Single Cylinder Deadbolt, Keyed Alike Group of 4

Specifications:

Door Thickness: Standard cylinder unit – 1-3/8"to 1-3/4"(35mm to 44mm).

Backset: Adjustable 2-3/8"(60mm)to 2-3/4"(70mm).

Latch Bolt: 1" (25mm) throw steel deadbolt with hardened, free spinning, steel pin insert.

Bolt Front: 2-1/4" (57mm) x 1" (25mm). Plastic spacer supplied for 1-1/8" (29mm) mortise.

Steel Strike: 1-1/16"(27mm) x 2-3/4"(70mm) x 0.05"(0.13"(3mm)thick with wood frame reinforcer).

Cylinder and Keys: Solid brass 6 pin cylinder. Two brass keys furnished standard. Arrow “A” or Schlage “C” keyway available.

Warranty: 1 year

ANSI/BHMA: Certified ANSI/BHMA A156.36 Auxiliary Locks, Grade 2.

UL/cUL: All locks listed for 3-hour A label single door, 4' x 8'.

Finishes: 630 - Satin Stainless Steel, 605 - Bright Brass, 613E - Dark Bronze

Model: Arrow DBX61-630-AR, DBX61-630-CS, DBX61-605-AR, DBX61-605-CS, DBX61-613E-AR, DBX61-613E-CS
