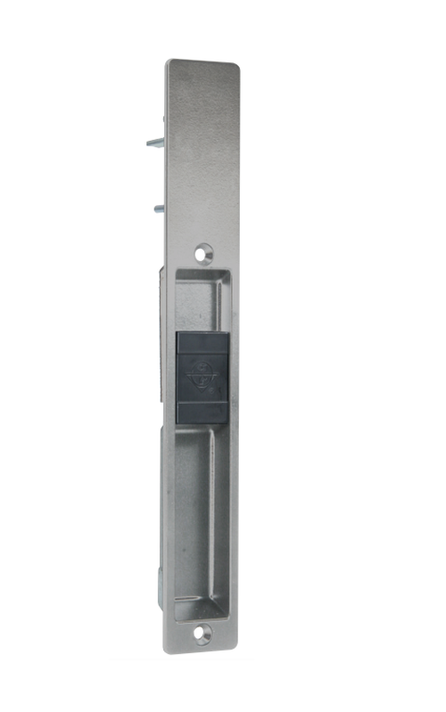

Adams Rite 4189 Flush Lockset without Cylinder for sliding doors

Adams Rite 4189 Flush Lockset without Cylinder, for sliding doors, including Deadlock, Individually Boxed

The 4189 Flush Locksets for sliding doors combine the time-tested and field-proven Adams Rite MS1847 Deadlock with a slide button.

Function
Projecting only 1/10" [2.5 mm] from the door stile on either side, the all-metal 4189,4190 Flush Locksets allow doors to slide freely past other sliding units or stationary panels. There are no projecting handles to prevent doors from being stacked in a wall pocket. Not recommended for wood doors.

Operation
Locksets operated from inside by a simple up or down movement of a slidebutton, set flush in the deeply recessed finger pull. The lock mechanism (latching action unavailable) is the time-tested and field-proven Adams Rite MS1847 Deadlock and features the adjustable, self-protecting bolt.
• 4189 without cylinder

Features

Backset: Variable, minimum 5/8" [15.9 mm], maximum 1-9/32" [32.5 mm] from face of lock to escutcheon and cylinder centerline.

Stile Depth: Minimum clear depth: Backset plus 9/16" [14.3 mm].

Escutcheons: Zinc alloy, satin silver epoxy.

Anti Lift Lock Mechanism: Basic MS1848-09 (radius ends) or MS1848-10 (square ends) is supplied. Stainless steelbolt is self-protecting, adjustable for reach.

Operation:
Inside: Vertical slide button projectsor retracts deadlock bolt.
Outside: 4190 features a key in, five pin cylinder with Schlage “C” keyway that projects or retracts bolt.

Standard Package: 4190, with cylinder, and 4189, without cylinder, are each complete packages. Shipped individually boxed with mounting screws. 4190 includes two keys. Standard 4190 units are keyed different (KD)

Model: Adams Rite 4189-09-01-130IB, 4189-09-03-130IB, 4189-10-01-130IB, 4189-10-03-130IB, 4189-09-01-119IB, 4189-09-03-119IB, 4189-10-01-119IB4189-10-03-119IB
