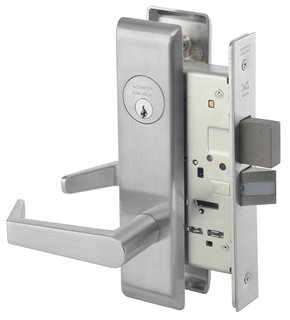

Yale JNR8860-2FL Store Door Mortise Lever Lock, Jefferson Style

Yale JNR8860-2FL Mortise Store Lock, JNR Trim

Function: Store Door Lock - F14
• Latchbolt retracted by lever either side
• Deadbolt operated by key both sides

Lever Style: JN - Jefferson Lever w/ CO Rose

Features
• UL Cycle above and beyond test completed at 12.3 Million Cycles. Verification ID: V572228
• Heavy-duty trim for resistance against damage and vandalism
• Functions available for any industrial or commercial application
• Field adjustable lever handing and latchbolt
• ANSI/BHMA Certified Grade 1 for long-life and durability
• UL/cUL listed for 3 hour fire rated doors
• 10 year mechanical warranty
• Available in a variety of attractive trims and finishes

Specifications

Armor Front: 8" x 1-1/4"

Backset: 2-3/4" only

Case: Wrought steel, zinc dichromated

Deadbolt: 1" throw, cast stainless steel

Door Thickness: 1-3/4" standard

Handing: Field reversible

Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength

Latchbolt: 3/4" throw, stainless steel onepiece anti-friction

Strike: 1-1/4" (model 2815) curved lip strike standard

Applications
• Offices
• Shopping centers
• Industrial buildings
• Commercial facilities

Model: Yale JNR8860-2FL 626, JNR8860-2FL 605, JNR8860-2FL 606, JNR8860-2FL 612, JNR8860-2FL 613, JNR8860-2FL 625, JNR8860-2FL 630, JNR8860-2FL 626 LC, JNR8860-2FL 605 LC, JNR8860-2FL 606 LC, JNR8860-2FL 612 LC, JNR8860-2FL 613 LC, JNR8860-2FL 625 LC, JNR8860-2FL 630 LC
