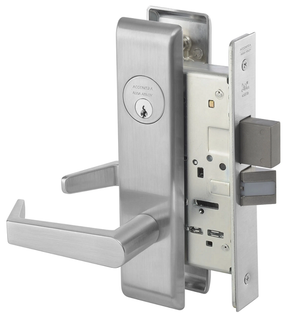

Yale AUR8861FL Dormitory or Storeroom Mortise Lever Lock

Yale AUR8861FL Mortise Dormitory or Storeroom Lock, AUR Trim

Function: Dormitory or Storeroom Lock
• Latchbolt retracted by lever either side
• Deadbolt operated by key outside, thumbturn inside
• When deadbolt is projected, outside lever is automatically locked
• When deadbolt is retracted, outside lever is automatically unlocked

Lever Style: AU - Augusta Lever w/ CO Rose

Features
• UL Cycle above and beyond test completed at 12.3 Million Cycles. Verification ID: V572228
• Heavy-duty trim for resistance against damage and vandalism
• Functions available for any industrial or commercial application
• Field adjustable lever handing and latchbolt
• ANSI/BHMA Certified Grade 1 for long-life and durability
• UL/cUL listed for 3 hour fire rated doors
• 10 year mechanical warranty
• Available in a variety of attractive trims and finishes

Specifications

Armor Front: 8" x 1-1/4"

Backset: 2-3/4" only

Cylinder: Conventional Cylinder (standard)

Case: Wrought steel, zinc dichromated

Deadbolt: 1" throw, cast stainless steel

Door Thickness: 1-3/4" standard

Handing: Field reversible

Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength

Latchbolt: 3/4" throw, stainless steel onepiece anti-friction

Strike: 1-1/4" (model 2815) curved lip strike standard

Applications
• Offices
• Shopping centers
• Industrial buildings
• Commercial facilities

Model: Yale AUR8861FL 626, AUR8861FL 605, AUR8861FL 606, AUR8861FL 612, AUR8861FL 613, AUR8861FL 625, AUR8861FL 630, AUR8861FL 626 LC, AUR8861FL 605 LC, AUR8861FL 606 LC, AUR8861FL 612 LC, AUR8861FL 613 LC, AUR8861FL 625 LC, AUR8861FL 630 LC
