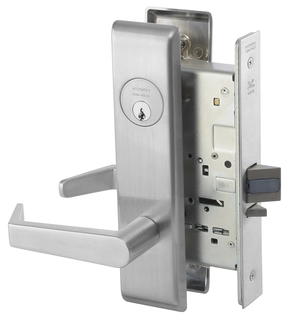

Yale AUR8805FL Storeroom or Closet Mortise Lever Lock, Augusta Style

Yale AUR8805FL Storeroom Mortise Lock, AUR Trim

Function: Storeroom Or Closet Lock - F07
• For use on storeroom, utility, exit doors
• Latchbolt retracted by key outside, lever inside
• Outside lever rigid at all times
• Inside lever always active
• Deadlocking latchbolt

Lever Style: AU - Augusta Lever w/ CO Rose

Features
• UL Cycle above and beyond test completed at 12.3 Million Cycles. Verification ID: V572228
• Heavy-duty trim for resistance against damage and vandalism
• Functions available for any industrial or commercial application
• Field adjustable lever handing and latchbolt
• ANSI/BHMA Certified Grade 1 for long-life and durability
• UL/cUL listed for 3 hour fire rated doors
• 10 year mechanical warranty
• Available in a variety of attractive trims and finishes

Specifications

Armor Front: 8" x 1-1/4"

Backset: 2-3/4" only

Cylinder: Conventional Cylinder (standard)

Case: Wrought steel, zinc dichromated

Door Thickness: 1-3/4" standard

Handing: Field reversible

Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength

Latchbolt: 3/4" throw, stainless steel onepiece anti-friction

Strike: 1-1/4" (model 2815) curved lip strike standard

Applications
• Offices
• Shopping centers
• Industrial buildings
• Commercial facilities

Model: Yale AUR8805FL 626, AUR8805FL 605, AUR8805FL 606, AUR8805FL 612, AUR8805FL 613, AUR8805FL 625, AUR8805FL 630, AUR8805FL 626 ICLC, AUR8805FL 626 LC, AUR8805FL 605 LC, AUR8805FL 606 LC, AUR8805FL 612 LC, AUR8805FL 613 LC, AUR8805FL 625 LC, AUR8805FL 630 LC, AUR8805FL 626 ICLC, AUR8805FL 605 ICLC, AUR8805FL 606 ICLC, AUR8805FL 612 ICLC, AUR8805FL 613 ICLC, AUR8805FL 625 ICLC, AUR8805FL 630 ICLC
