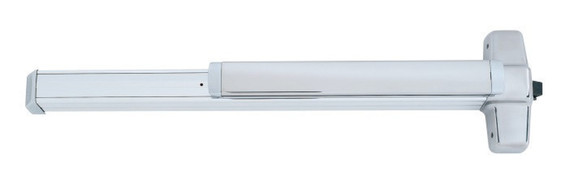

Grade 1 Extra Protection Rim Exit Device, Wide Stile Pushpad, Exit Only, Less Trim, Hex Key Dogging, Non-Handed

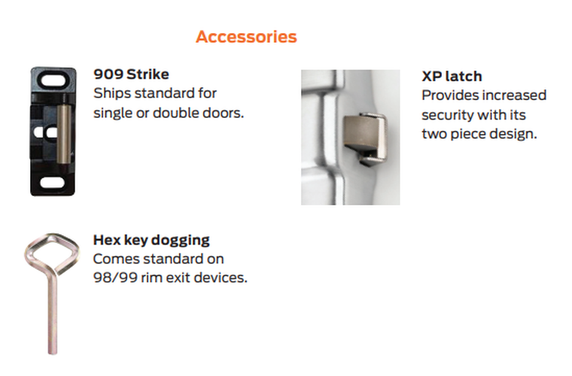

The “smart” latch changes shape when subjected to external forces. This design enables the exit door to withstand
an external attack and remain secure. Additionally, the patented latch bolt design provides greater, longer-lasting latch bolt
to strike contact which is not easily affected by the twisting motion of a weakened frame, resulting in an opening that will remain strong.
Specifications
Device functions: EO - Exit Only
Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size - 4' 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor: 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion
Center case: 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)
Latch bolt: Deadlocking, 3⁄4" (19mm) throw

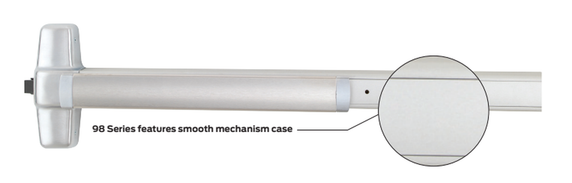

Feature: Features smooth mechanism case
Finishes: 605 - Brights Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626/626AM - Satin Chrome,
628 - Satin Aluminum Clear Anodized, 710 - Dark Bronze Anodized Aluminum,711 - Black Anodized Aluminum
and 643E - 643E - Aged Bronze (619 and 630 available with 98 Series only)
Fasteners and sex bolts: Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors.
Model: Von Duprin XP98EO 3 US28, XP98EO 3 26D, XP98EO 3 313, XP98EO 3 315, XP98EO 3 US3, XP98EO 3 643E, XP98EO 3 32D, XP98EO 4 US28, XP98EO 4 26D, XP98EO 4 313, XP98EO 4 315, XP98EO 4 US3, XP98EO 4 643E, XP98EO 4 32D
