Von Duprin RXQEL98EO-F Rim Exit Device w/ Electric Latch Retraction, Request to Exit

Grade 1 Rim Exit Device, Exit Only, Fire Rated, Motorized Latch Retraction, Request to Exit, Non-Handed

Request to exit (RX)
The RX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch
which monitors the push pad. The device can be connected to a security console, or may be used as a
single door alarm when used with a horn and power supply. The RX switch option should not be used to
control a load, but as a signalling switch (2 amps resisitive maximum).

Quiet electric latch retraction (QEL)
Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments
where limited operational noise is desired. These devices always provide mechanical egress. The
electrified latch retraction can also be activated by an access system or building automation system to unlatch the
exit device momentarily. Often the QEL is used with a credential reader and access control system to unlock the
door momentarily for authorized users.

The QEL can also be configured to electronically retract the latch for an extended period of time to allow free entry.
This is a convenient alternative to mechanical dogging.

The QEL option is available on panic devices and fire rated devices. UL approved for Class II circuit applications.

The QEL option does not include the power transfer from door to frame, the power supply, or the control operator.
Refer to EPT-2 power transfer and the PS902 or 914 power supply.

The PS902/914 with the 2RS, 4RL or 4R board is the minimum required. Other option boards available for other functions,
see PS902/914 power supply for additional information.

The QEL has a low in rush current, so it can be used with standard Schlage power supplies. Calculate the
peak current draw of all devices in the system to determine the required amperage of the supply.

The -2RS option board is designed to control two electric latch retraction devices and provide time delay between the
firing of outputs is required. The power transfer is also sold separately.

QEL Electrical load
Voltage - 24VDC
Current - 1.0 A Inrush (0.5 sec.) / 0.14 A Holding

Specifications

Device functions: EO - Exit Only

Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size - 4' 2'10" to 4' (864mm to 1219mm) Door size

Device centerline from finished floor: 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion

Center case: 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)

Latch bolt: Deadlocking, 3⁄4" (19mm) throw

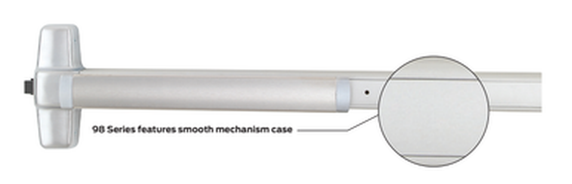

Feature: Features smooth mechanism case

Finishes: 605 - Brights Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626/626AM - Satin Chrome,
628 - Satin Aluminum Clear Anodized, 710 - Dark Bronze Anodized Aluminum,711 - Black Anodized Aluminum
and 643E - 643E - Aged Bronze (619 and 630 available with 98 Series only)

Fasteners and sex bolts: Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors.

Model: Von Duprin RXQEL98EO-F 3 US28, RXQEL98EO-F 3 26D, RXQEL98EO-F 3 313, RXQEL98EO-F 3 315, RXQEL98EO-F 3 US3, RXQEL98EO-F 3 643E, RXQEL98EO-F 3 32D, RXQEL98EO-F 4 US28, RXQEL98EO-F 4 26D, RXQEL98EO-F 4 313, RXQEL98EO-F 4 315, RXQEL98EO-F 4 US3, RXQEL98EO-F 4 643E, RXQEL98EO-F 4 32D
