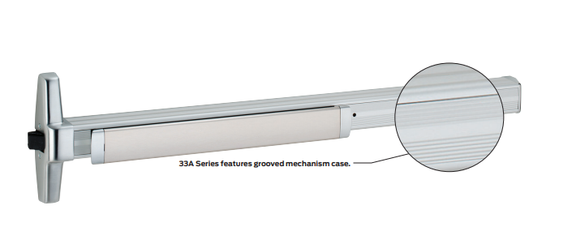

Von Duprin RXEL3327AEO Surface Vertical Rod Exit Device, Electric Latch Retraction, Request to Exit

Von Duprin RXEL3327AEO Grade 1 Surface Vertical Rod Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, Hex Key Dogging, Electric Latch Retraction, Request to Exit, Non-Handed

Request to exit (RX)
The RX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch
which monitors the pushpad.

The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply. A continuous current electric transfer must be used for transferring power from the frame to the door.

The RX switch option should not be used to control a load, but as a signalling switch (0.5 amps. resistive maximum). The RX switch is available in a low current (LC) switch. Most commonly used in computer operated monitoring systems.

Electric latch retraction (EL)
The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation. A powerful, continuous duty solenoid retracts the latch bolt, either for momentary unlatching, or for extended periods of time. The EL feature is an alternative to manual dogging. If manual hex-key dogging is required, specify HD-EL.

EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarmsystem. UL approved for Class II circuit applications.

The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914 power supply.

The PS914 with the 900-2RS option card is minimum option card required. Other option cards available for other functions, see PS914 power supply for additional information.

Solenoid specifications:
Continuous duty – 24 VDC
Current inrush – 16 amps
Current holding – 0.3 amps

Solenoid resistance:
-grn-yel 1.2 – 2.2 OHMS
-grn-org 100 – 150 OHMS

Specifications

3327A fits door stiles as narrow as 1 3/4" (44mm). Newly designed device has a one piece center case cover.

Device functions: EO - Exit Only

Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size

Device centerline from finished floor: 39 13⁄16" (1011mm) 39 11⁄16" (1008mm) with mullion

Center case: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)

Device Handing: Non-Handed (except when the SS (Signal Switch) option is used).

Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)

Latch bolt: Deadlocking, 3⁄4" (19mm) throw

Finishes: 605, 606, 612, 619 (35A only), 625, 626, 626AM, 628, 710, 711

Fasteners and sex bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)

Model: Von Duprin RXEL3327AEO 26D, RXEL3327AEO US28, RXEL3327AEO US3, RXEL3327AEO 26DAM, RXEL3327AEO 313, RXEL3327AEO 315, RXEL3327AEO US4, RXEL3327AEO US26
