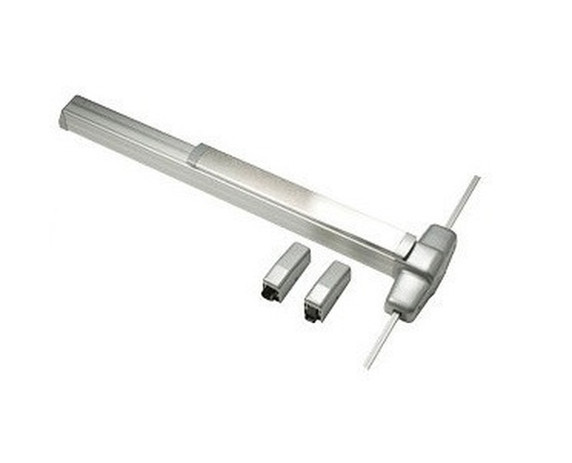

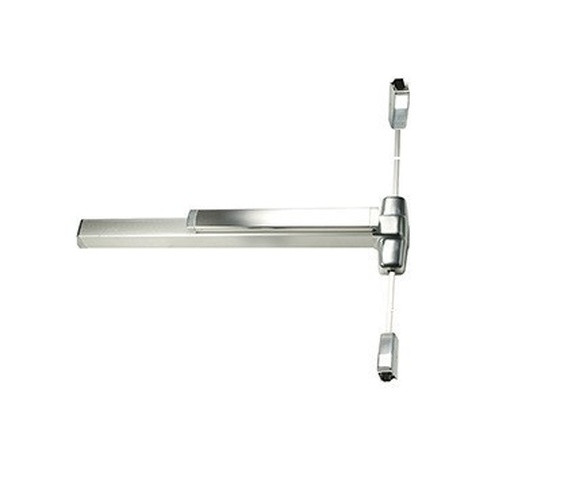

Von Duprin RX9927EO-F Surface Vertical Rod Exit Device, Request to Exit
In Stock
$2,089.04
Price:
$3,364.00
Instant Savings
$1,274.96
Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Fire Rated, Request to Exit, Field Reversible
Request to exit (RX)
The RX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch
which monitors the push pad. The device can be connected to a security console, or may be used as a
single door alarm when used with a horn and power supply. The RX switch option should not be used to
control a load, but as a signalling switch (2 amps resisitive maximum).
Specifications
Device functions: EO - Exit Only
Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size - 4' 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor: 39 5⁄8" (1006 mm)
Center case: 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)

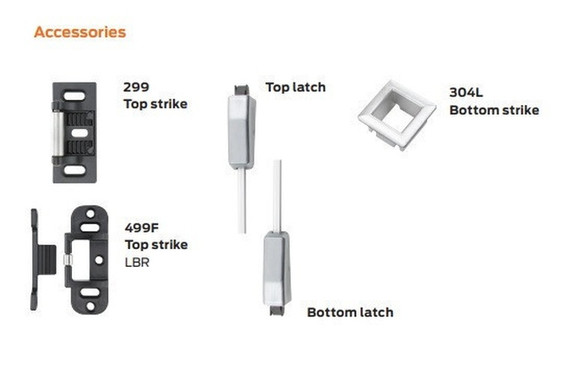

Latch bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw
Door undercut: 1⁄4" (7mm) recommended
Top and bottom latch case: 4 1⁄2" x 2 1⁄8" x 1 1⁄2" (114mm x 54mm x 38mm)
Vertical rods: 1⁄2" square tubing, standard rods accommodate 7'(2134mm) doors. Top rod length: 34 15⁄16" (887mm);
Bottom rod length: 31 1⁄2" (794mm). Extension rods available in 3' (914mm) for doors over 7'
One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors

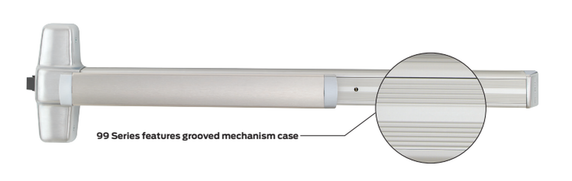

Feature: Features grooved mechanism case
Finishes: 605 - Brights Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626/626AM - Satin Chrome,
628 - Satin Aluminum Clear Anodized, 710 - Dark Bronze Anodized Aluminum,711 - Black Anodized Aluminum
and 643E - 643E - Aged Bronze (619 and 630 available with 98 Series only)
Fasteners and sex bolts: Includes screw pack for 1 3⁄4" (44mm) to 2 1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and
bottom latch.
Model: Von Duprin RX9927EO-F 3 US28, RX9927EO-F 3 26D, RX9927EO-F 3 313, RX9927EO-F 3 315, RX9927EO-F 3 US3, RX9927EO-F 3 643E, RX9927EO-F 3 32D, RX9927EO-F 4 US28, RX9927EO-F 4 26D, RX9927EO-F 4 313, RX9927EO-F 4 315, RX9927EO-F 4 US3, RX9927EO-F 4 643E, RX9927EO-F 4 32D
