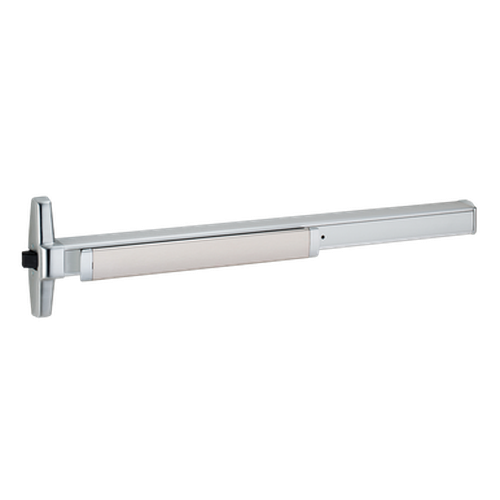

Von Duprin RX35AEO Narrow Stile Rim Exit Device, Request to Exit
In Stock
$1,746.25
Price:
$2,812.00
Instant Savings
$1,065.75
Von Duprin RX35AEO Grade 1 Rim Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, Hex Key Dogging, Request to Exit, Non-Handed
Request to exit (RX)
The RX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch
which monitors the pushpad.
The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply. A continuous current electric transfer must be used for transferring power from the frame to the door.
The RX switch option should not be used to control a load, but as a signalling switch (0.5 amps. resistive maximum). The RX switch is available in a low current (LC) switch. Most commonly used in computer operated monitoring systems.
Specifications

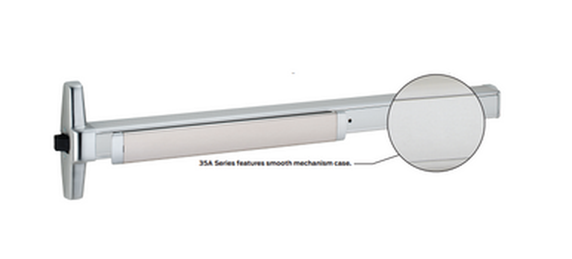

35A fits door stiles as narrow as 1 3/4 " (44mm). Newly designed device has a one piece center case cover
Device functions: EO - Exit Only
Device lengths
3' 2'4' to 3' (711mm to 914mm) Door size
4' 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor: 39 13⁄16" (1011mm) 39 11⁄16" (1008mm) with mullion

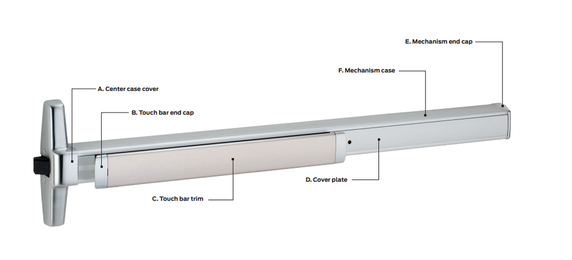

Center case: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
Device Handing: Non-Handed (except when the SS (Signal Switch) option is used).
Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)
Latch bolt: Deadlocking, 3⁄4" (19mm) throw
Finishes: 605, 606, 612, 619 (35A only), 625, 626, 626AM, 628, 710, 711
Fasteners and sex bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Model: Von Duprin RX35AEO 26D, RX35AEO US28, RX35AEO US3, RX35AEO 26DAM, RX35AEO 313, RX35AEO 315, RX35AEO US4, RX35AEO US26
