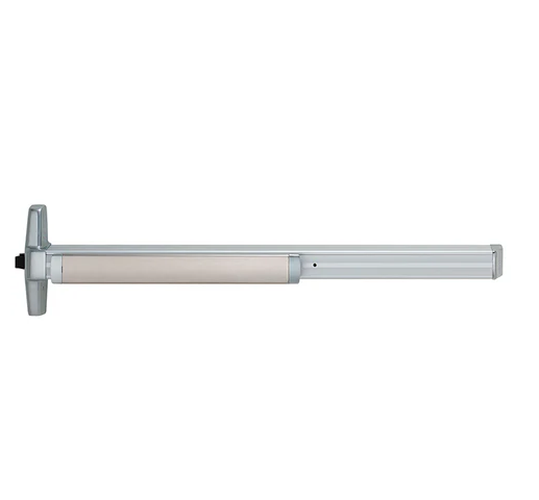

Von Duprin RX33AEO Narrow Stile Rim Exit Device, Request to Exit
In Stock
$1,746.25
Price:
$2,812.00
Instant Savings
$1,065.75

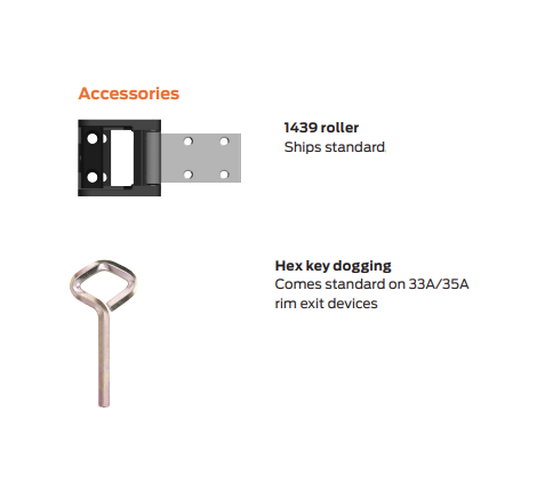

Von Duprin RX33AEO Grade 1 Rim Exit Device, Narrow Stile Pushpad, 36", Exit Only, Less Trim, Hex Key Dogging, Request to Exit, Non-Handed
Request to exit (RX)
The RX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch
which monitors the pushpad.
The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply. A continuous current electric transfer must be used for transferring power from the frame to the door.
The RX switch option should not be used to control a load, but as a signalling switch (0.5 amps. resistive maximum). The RX switch is available in a low current (LC) switch. Most commonly used in computer operated monitoring systems.
Specifications

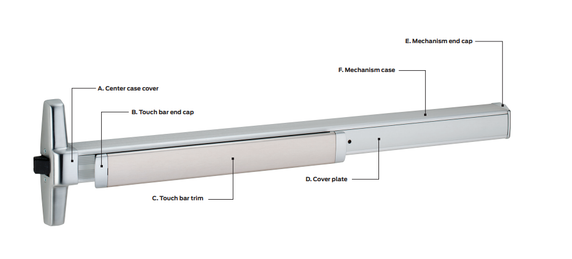

33A fits door stiles as narrow as 1 3/4 " (44mm). Newly designed device has a one piece center case cover
Device functions: EO - Exit Only
Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size 4' 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor: 39 13⁄16" (1011mm) 39 11⁄16" (1008mm) with mullion
Center case: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
Device Handing: Non-Handed (except when the SS (Signal Switch) option is used).

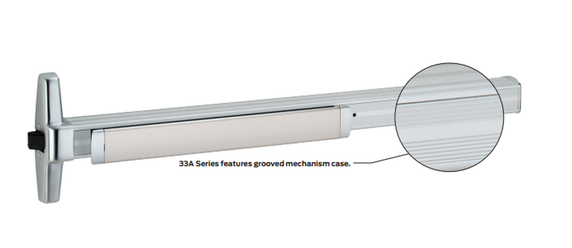

Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)
Latch bolt: Deadlocking, 3⁄4" (19mm) throw
Finishes: 605, 606, 612, 619 (35A only), 625, 626, 626AM, 628, 710, 711
Fasteners and sex bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Model: Von Duprin RX33AEO 26D, RX33AEO US28, RX33AEO US3, RX33AEO 26DAM, RX33AEO 313, RX33AEO 315, RX33AEO US4, RX33AEO US26
