Von Duprin RX3327AEO Surface Vertical Rod Exit Device, Request to Exit

Von Duprin RX3327AEO Surface Vertical Rod Exit Device, Request to Exit

In Stock

$2,384.02

Price: $3,839.00

Instant Savings $1,454.98

FREE SHIPPING

SKU: RX3327AEO 3 26D

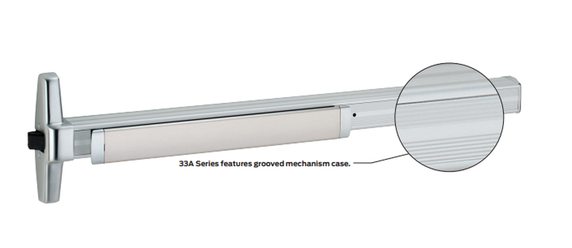

Series: 33A - Grooved Case

Device Type: Surface Vertical Rod

Stile: Narrow Stile

Trim Function: No trim - Exit Only

Dogging Options: Hex Key Dogging (Non Fire Rated)

Choose Options:

Hurry! Only left

Quantity:

Details
Other Resources

Von Duprin RX3327AEO Grade 1 Surface Vertical Rod Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, Hex Key Dogging, Request to Exit, Non-Handed

Request to exit (RX)
The RX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch
which monitors the pushpad.

The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply. A continuous current electric transfer must be used for transferring power from the frame to the door.

The RX switch option should not be used to control a load, but as a signalling switch (0.5 amps. resistive maximum). The RX switch is available in a low current (LC) switch. Most commonly used in computer operated monitoring systems.

Specifications

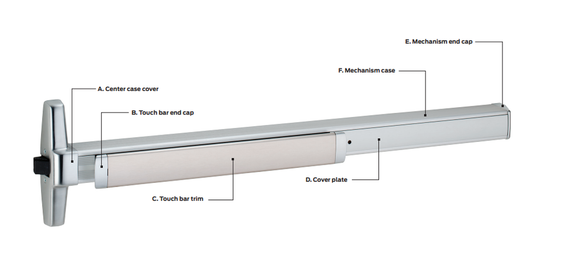

3327A fits door stiles as narrow as 1 3/4" (44mm). Newly designed device has a one piece center case cover.

Device functions: EO - Exit Only

Device lengths
3' 2'4' to 3' (711mm to 914mm) Door size
4' 2'10" to 4' (864mm to 1219mm) Door size

Device centerline from finished floor: 39 13⁄16" (1011mm) 39 11⁄16" (1008mm) with mullion

Center case: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)

Device Handing: Non-Handed (except when the SS (Signal Switch) option is used).

Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)

Latch bolt: Deadlocking, 3⁄4" (19mm) throw

Finishes: 605, 606, 612, 619 (35A only), 625, 626, 626AM, 628, 710, 711

Fasteners and sex bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)

Model: Von Duprin RX3327AEO 26D, RX3327AEO US28, RX3327AEO US3, RX3327AEO 26DAM, RX3327AEO 313, RX3327AEO 315, RX3327AEO US4, RX3327AEO US26
