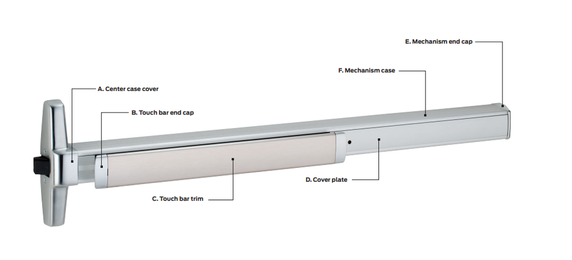

Von Duprin LX3547AEO Concealed Vertical Rod Exit Device, Latchbolt Monitor

Von Duprin LX3547AEO Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, Hex Key Dogging, Latchbolt Monitor, Non-Handed

Latch bolt monitoring (LX)
The LX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch which monitors the latch bolt. The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply. A continuous current electric transfer must be used for transferring power from the frame to the door.

The LX switch option should not be used to control a load, but as a signalling switch (0.5 amps. resistive maximum).

The LX switch is available in a low current (LC) switch. Most commonly used in computer operated monitoring systems.

Specifications

3547A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm). Newly designed device has a one piece center case cover.

Device functions: EO - Exit Only

Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size

Device centerline from finished floor: 39 13⁄16" (1006mm)

Center case: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)

Device Handing: Non-Handed (except when the SS (Signal Switch) option is used).

Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)

Latch bolt: Deadlocking anti-friction top and bottom bolt 5/8" (16mm) throw

Door undercut: 1⁄4" (7mm)

Top and bottom latch case: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm)

Vertical rods:
Round 2 piece adjustable rods
Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm)
Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
Extension rod kits available for doors over 8'4" (2533mm)

Finishes: 605, 606, 612, 619 (35A only), 625, 626, 626AM, 628, 710, 711

Fasteners and sex bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)

Model: Von Duprin LX3547AEO 26D, LX3547AEO US28, LX3547AEO US3, LX3547AEO 26DAM, LX3547AEO 313, LX3547AEO 315, LX3547AEO US4, LX3547AEO US26
