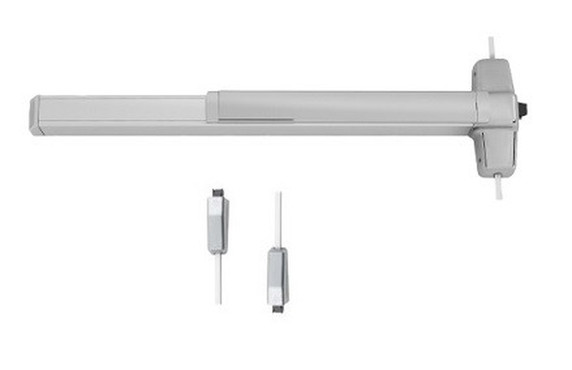

Von Duprin LD9827EO Surface Vertical Rod Exit Bar, Smooth Case
In Stock
$1,599.70
Price:
$2,576.00
Instant Savings
$976.30
Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less Dogging, Field Reversible
Specifications
Device functions: EO - Exit Only
Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size - 4' 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor: 39 5⁄8" (1006 mm)
Center case: 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)
Latch bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw
Door undercut: 1⁄4" (7mm) recommended
Top and bottom latch case: 4 1⁄2" x 2 1⁄8" x 1 1⁄2" (114mm x 54mm x 38mm)
Vertical rods: 1⁄2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15⁄16" (887mm);
Bottom rod length: 31 1⁄2" (794mm). Extension rods available in 3' (914mm) for doors over 7'; One piece top rod is
available for 8' (2438mm) and 10' (3048mm) doors.

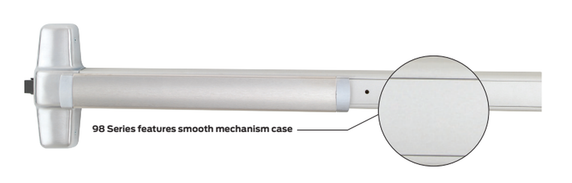

Feature: Features smooth mechanism case
Finishes: 605 - Brights Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626/626AM - Satin Chrome,
628 - Satin Aluminum Clear Anodized, 710 - Dark Bronze Anodized Aluminum,711 - Black Anodized Aluminum
and 643E - 643E - Aged Bronze (619 and 630 available with 98 Series only)
Fasteners and sex bolts: Includes screw pack for 1 3⁄4" (44mm) to 2 1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch.
Model: Von Duprin LD9827EO 3 US28, LD9827EO 3 26D, LD9827EO 3 313, LD9827EO 3 315, LD9827EO 3 US3, LD9827EO 3 643E, LD9827EO 3 32D, LD9827EO 4 US28, LD9827EO 4 26D, LD9827EO 4 313, LD9827EO 4 315, LD9827EO 4 US3, LD9827EO 4 643E, LD9827EO 4 32D
