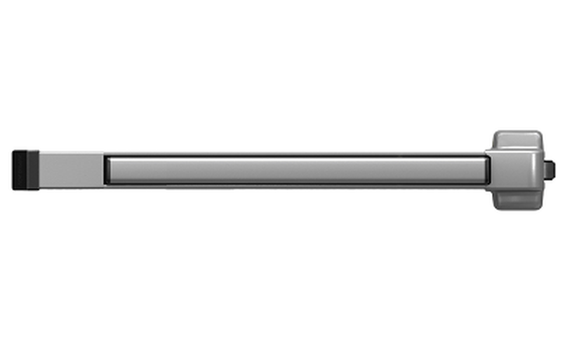

Von Duprin LD22EO Rim Panic Exit Device, Less dogging - Exit only
In Stock
$335.79
Price:
$646.00
Instant Savings
$310.21
Grade 1 Rim Exit Device, Wide Stile Pushpad, Exit Only, Accepts Various Trim, Less Trim, Less Dogging, Non-Handed
22 Rim exit device for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are Grade 1 rated to ANSI A156.3, 2014. Devices cover stock hollow metal doors with 161 door prep cutouts. Fits door stiles as narrow as 3 13⁄16" (97 mm). The device is non-handed.
Specifications
Device functions: EO - Exit Only

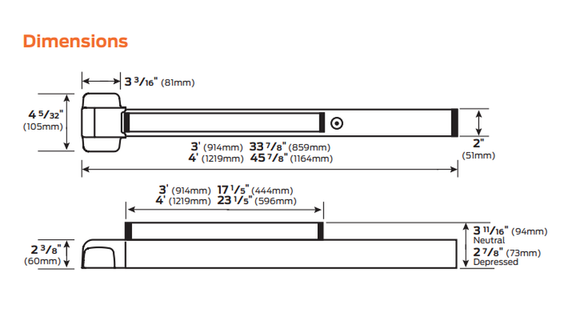

Device lengths: 3' (914 mm) - 4' (1219 mm)
Device centerline from finished floor: 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion
Center case: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)
Mechanism case: 2" (51 mm) x 2 3/8" (60 mm)
Projection: Pushbar neutral – 3 11/16" (94mm) Pushbar depressed – 2 7/8" (73mm)
Latch bolt: Deadlocking, 3⁄4" (19mm) throw
Finishes: 526, 622, 689, 695
Fasteners: Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors.
Model: Von Duprin LD22EO 3 689, LD22EO 4 689, LD22EO 3 695, LD22EO 4 695, LD22EO 3 622, LD22EO 4 622
