Grade 1 Rim Exit Device, Hurricane Rated, Exit Only, Hex Key Dogging, Non-Handed
Hurricane Rated
Hurricane resistant openings are designed to withstand storm conditions for long periods of time
while maintaining the structural and functional integrity of the opening. The primary purpose is to
not only prevent debris and wind from penetrating the assembly but also to maintain functionality after the storm.
Specifications
Device functions: EO - Exit Only
Device lengths: 4' 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor: 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion
Center case: 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)

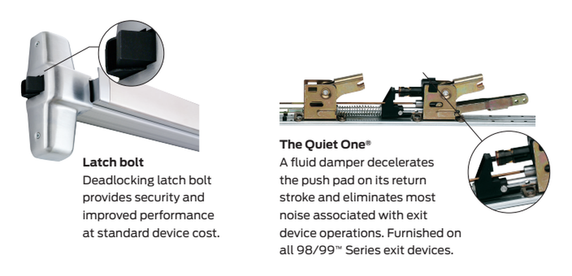

Latch bolt: Deadlocking, 3⁄4" (19mm) throw

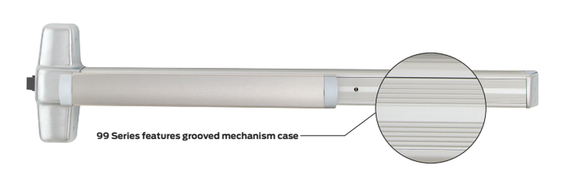

Feature: Features grooved mechanism case
Finishes: 605 - Brights Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626/626AM - Satin Chrome,
628 - Satin Aluminum Clear Anodized, 710 - Dark Bronze Anodized Aluminum,711 - Black Anodized Aluminum
and 643E - 643E - Aged Bronze (619 and 630 available with 98 Series only)
Fasteners and sex bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors.
Model: Von Duprin HH99EO 3 US28, HH99EO 3 26D, HH99EO 3 313, HH99EO 3 315, HH99EO 3 US3, HH99EO 3 643E, HH99EO 3 32D, HH99EO 4 US28, HH99EO 4 26D, HH99EO 4 313, HH99EO 4 315, HH99EO 4 US3, HH99EO 4 643E, HH99EO 4 32D
