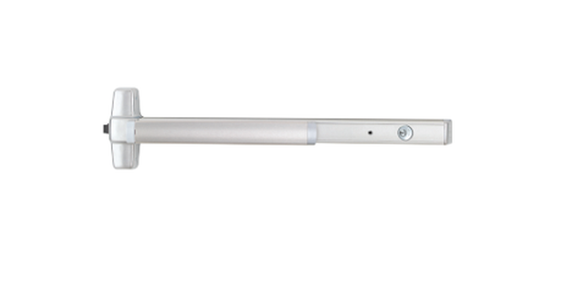

Von Duprin CXA9927EO RGO Chexit Surface Vertical Rod Exit Device

Grade 1 Delayed Egress Exit Device, Exit Only, Hex Key Dogging, With Rod Guards, Field Reversible

The Chexit (CX) (with motor driven blocking actuator)
The Von Duprin Chexit device is designed for controlled egress applications. It meets both life safety and security needs,
as well as the requirements of NFPA 101 for "Special Locking Arrangement" and IBC "Special Egress-Control Devices".
All control inputs, auxiliary locking, local alarm and remote signaling outputs are self-contained in the Chexit assembly.
Numerous configurable options allow the device to be customized for the specific code or application requirements.
The standard Chexit device sounds an alarm and keeps the door secured for 15 seconds following an exit attempt with
immediate release upon fire.

The Chexit device includes a 6" x 20" decal for application on door. “PUSH UNTIL ALARM SOUNDS.
DOOR CAN BE OPENED IN 15 SECONDS”

Cylinder: Cylinders are not furnished with the Chexit device and must be specified when ordering.
Use 1 1/4" mortise cylinder with compression ring 36-083 with straight cam and orient cam as shown. Schlage
cylinder 20-001-114 recommended for the device.

Chexit typical applications
Chexit single door with options – The Chexit is used as an access control device. The card reader allows access.
Also shown in this application is an external horn and door position switch. The auxiliary horn is used for increased
volume in remote locations. Using a door position switch gives added security to the opening in case the door
is not reclosed.

With the Chexit disarmed, the opening functions as a normal exit device. If card readers are required on
both sides of the door, the normally closed contacts of the readers should be wired in series.

Specifications / Power supply requirements
Input voltage – 24VDC
Input current inrush – 1.25A
Input current holding – 390mA
Alarm relay and Secure relay contact ratings – 24VDC, 1A
Fire alarm, Inhibit and Door position switch inputs require normally closed dry contacts.

Power supply information for CX devices with motor driven blocking actuator
Power supply - Maximum number of devices
PS902 (up to 2 amps) - 1 Chexit device
PS904 (up to 4 amps) - 3 Chexit devices
PS906 (up to 6 amps) - 4 Chexit devices
PS914 (up to 4 amps) - 4 Chexit devices

Specifications

Device functions: EO - Exit Only

Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size - 4' 2'10" to 4' (864mm to 1219mm) Door size

Device centerline from finished floor: 39 5⁄8" (1006 mm)

Center case: 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)

Latch bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw

Door undercut: 1⁄4" (7mm) recommended

Top and bottom latch case: 4 1⁄2" x 2 1⁄8" x 1 1⁄2" (114mm x 54mm x 38mm)

Vertical rods: 1⁄2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15⁄16" (887mm);
Bottom rod length: 31 1⁄2" (794mm). Extension rods available in 3' (914mm) for doors over 7'; One piece top rod is
available for 8' (2438mm) and 10' (3048mm) doors.

Feature: Features grooved mechanism case

Finishes: 605 - Brights Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626/626AM - Satin Chrome,
628 - Satin Aluminum Clear Anodized, 710 - Dark Bronze Anodized Aluminum,711 - Black Anodized Aluminum
and 643E - 643E - Aged Bronze (619 and 630 available with 98 Series only)

Fasteners and sex bolts: Includes screw pack for 1 3⁄4" (44mm) to 2 1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch.

Model: Von Duprin CXA9927EO US28, CXA9927EO 26D, CXA9927EO 313, CXA9927EO 315, CXA9927EO US3, CXA9927EO 643E, CXA9927EO 32D
