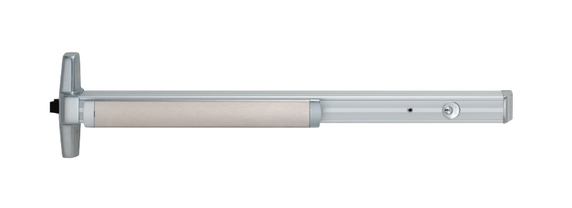

Von Duprin CX33AEO Narrow Stile Chexit Rim Exit Device

Von Duprin CX33AEO Grade 1 Delayed Egress Exit Device, Narrow Stile Pushpad, 36" Device, Exit Only, Less Trim, Hex Key Dogging, Quiet Electric Latch Retraction, Non-Handed

The Chexit (CX) (with motor driven blocking actuator)
The Von Duprin Chexit device is designed for controlled egress applications. It meets both life safety and security needs,
as well as the requirements of NFPA 101 for "Special Locking Arrangement" and IBC "Special Egress-Control Devices".
All control inputs, auxiliary locking, local alarm and remote signaling outputs are self-contained in the Chexit assembly.
Numerous configurable options allow the device to be customized for the specific code or application requirements.
The standard Chexit device sounds an alarm and keeps the door secured for 15 seconds following an exit attempt with
immediate release upon fire.

The Chexit device includes a 6" x 20" decal for application on door. “PUSH UNTIL ALARM SOUNDS. DOOR CAN BE OPENED IN 15 SECONDS”

Chexit typical applications
Chexit single door with options – The Chexit is used as an access control device. The card reader allows access.
Also shown in this application is an external horn and door position switch. The auxiliary horn is used for increased
volume in remote locations. Using a door position switch gives added security to the opening in case the door
is not reclosed.

With the Chexit disarmed, the opening functions as a normal exit device. If card readers are required on
both sides of the door, the normally closed contacts of the readers should be wired in series.

Specifications / Power supply requirements
Input voltage – 24VDC
Input current inrush – 1.25A
Input current holding – 390mA
Alarm relay and Secure relay contact ratings – 24VDC, 1A
Fire alarm, Inhibit and Door position switch inputs require normally closed dry contacts.

Power supply information for CX devices with motor driven blocking actuator
Power supply  -  Maximum number of devices
PS902 (up to 2 amps) - 1 Chexit device
PS904 (up to 4 amps) - 3 Chexit devices
PS906 (up to 6 amps) - 4 Chexit devices
PS914 (up to 4 amps) - 4 Chexit devices

Specifications

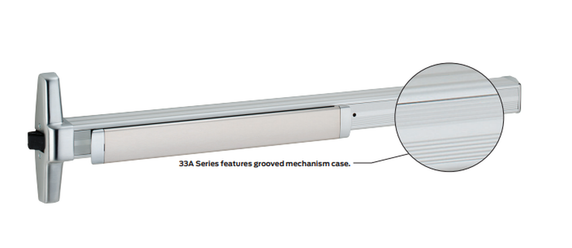

33A fits door stiles as narrow as 1 3/4 " (44mm). Newly designed device has a one piece center case cover

Device functions: EO - Exit Only

Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size 4' 2'10" to 4' (864mm to 1219mm) Door size

Device centerline from finished floor: 39 13⁄16" (1011mm) 39 11⁄16" (1008mm) with mullion

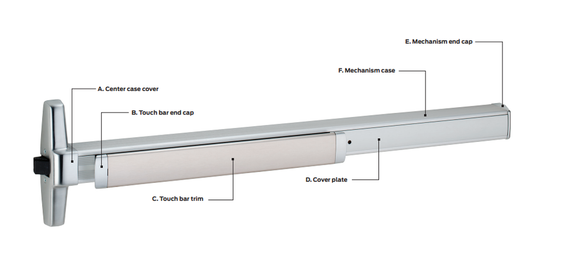

Center case: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)

Device Handing: Non-Handed (except when the SS (Signal Switch) option is used).

Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)

Latch bolt: Deadlocking, 3⁄4" (19mm) throw

Finishes: 605, 606, 612, 619 (35A only), 625, 626, 626AM, 628, 710, 711

Fasteners and sex bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)

Model: Von Duprin CX33AEO 26D, CX33AEO US28, CX33AEO US3, CX33AEO 26DAM, CX33AEO 313, CX33AEO 315, CX33AEO US4, CX33AEO US26
