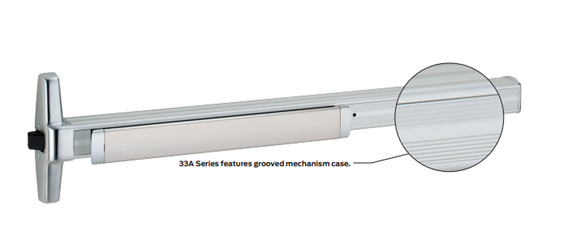

Von Duprin CD33AEO Cylinder Dogging Rim Exit Device
In Stock
$1,605.29
Price:
$2,585.00
Instant Savings
$979.71
Von Duprin CD33AEO Grade 1 Rim Exit Device, Narrow Stile Pushpad, 36", Exit Only, Less Trim, Cylinder Dogging, Non-Handed
Cylinder dogging (CD)
Cylinder dogging is available on all 33A/35A panic exit devices to replace the standard hex key dogging. Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam. When ordering, reference Schlage cylinder 20-001, 11/4", XQ11-949. This provides the L583-477 cam inverted at the factory.
Specifications
33A fits door stiles as narrow as 1 3/4 " (44mm). Newly designed device has a one piece center case cover
Device functions: EO - Exit Only
Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size 4' 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor: 39 13⁄16" (1011mm) 39 11⁄16" (1008mm) with mullion

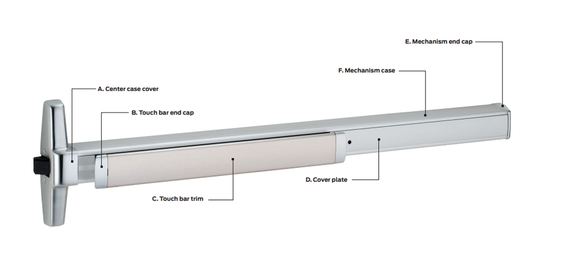

Center case: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
Device Handing: Non-Handed (except when the SS (Signal Switch) option is used).
Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)
Latch bolt: Deadlocking, 3⁄4" (19mm) throw
Finishes: 605, 606, 612, 619 (35A only), 625, 626, 626AM, 628, 710, 711
Fasteners and sex bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Model: Von Duprin CD33AEO 26D, CD33AEO US28, CD33AEO US3, CD33AEO 26DAM, CD33AEO 313, CD33AEO 315, CD33AEO US4, CD33AEO US26
