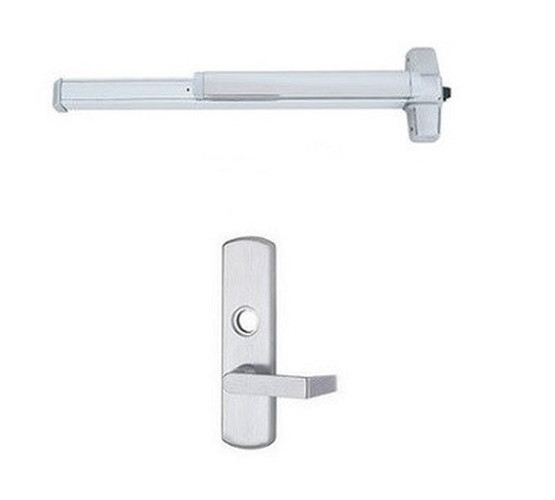

Von Duprin 98L-NL Rim Panic Exit Device, with 996L-NL Night Latch Trim

Grade 1 Rim Exit Device, Night Latch Function, Hex Key Dogging, Field Reversible

Specifications

Device functions: NL - Night latch, Key retracts latchbolt

Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size - 4' 2'10" to 4' (864mm to 1219mm) Door size

Device centerline from finished floor: 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion

Center case: 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)

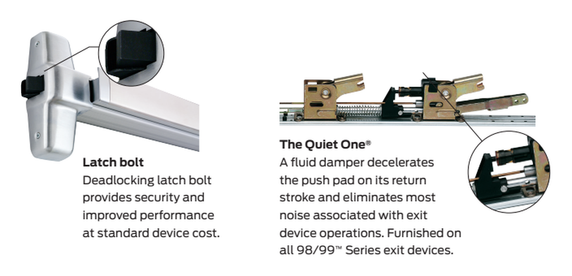

Latch bolt: Deadlocking, 3⁄4" (19mm) throw

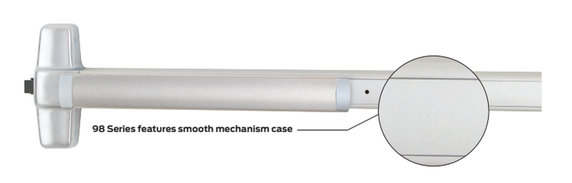

Feature: Features smooth mechanism case

Finishes: 605 - Brights Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626/626AM - Satin Chrome,
628 - Satin Aluminum Clear Anodized, 710 - Dark Bronze Anodized Aluminum,711 - Black Anodized Aluminum
and 643E - 643E - Aged Bronze (619 and 630 available with 98 Series only)

Fasteners and sex bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors.

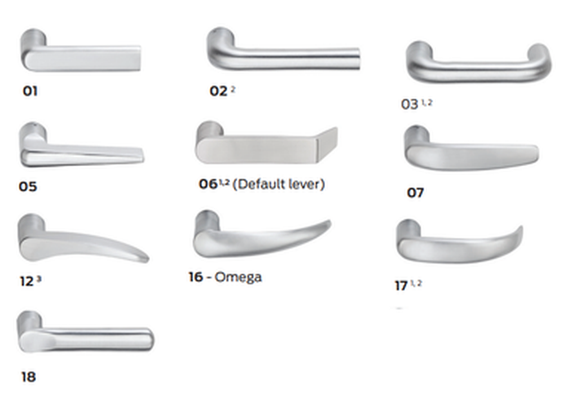

Model: Von Duprin 98L-NL-06 3 26D RHR, 98L-NL-06 3 26D LHR, 98L-NL-06 4 26D RHR, 98L-NL-06 4 26D LHR, 98L-NL-06 3 US28 RHR, 98L-NL-06 3 US28 LHR, 98L-NL-06 4 US28 RHR, 98L-NL-06 4 US28 LHR
