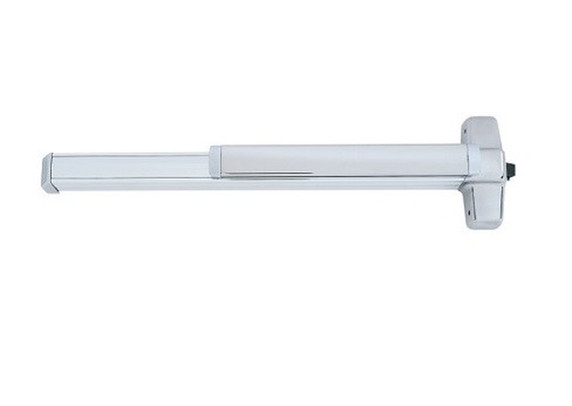

Von Duprin 98EO-F Fire Rated Rim Panic Device, Exit Only, Smooth Case
In Stock
$1,289.82
Price:
$2,077.00
Instant Savings
$787.18
Grade 1 Rim Exit Device, Exit Only, Fire Rated, Non-Handed
Specifications
Device functions: EO - Exit Only
Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size - 4' 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor: 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion
Center case: 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)
Latch bolt: Deadlocking, 3⁄4" (19mm) throw
Feature: Features smooth mechanism case
Finishes: 605 - Brights Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626/626AM - Satin Chrome,
628 - Satin Aluminum Clear Anodized, 710 - Dark Bronze Anodized Aluminum,711 - Black Anodized Aluminum
and 643E - 643E - Aged Bronze (619 and 630 available with 98 Series only)
Fasteners and sex bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors.
Model: Von Duprin 98EO-F 3 US28, 98EO-F 3 26D, 98EO-F 3 313, 98EO-F 3 315, 98EO-F 3 US3, 98EO-F 3 643E, 98EO-F 3 32D, 98EO-F 4 US28, 98EO-F 4 26D, 98EO-F 4 313, 98EO-F 4 315, 98EO-F 4 US3, 98EO-F 4 643E, 98EO-F 4 32D
