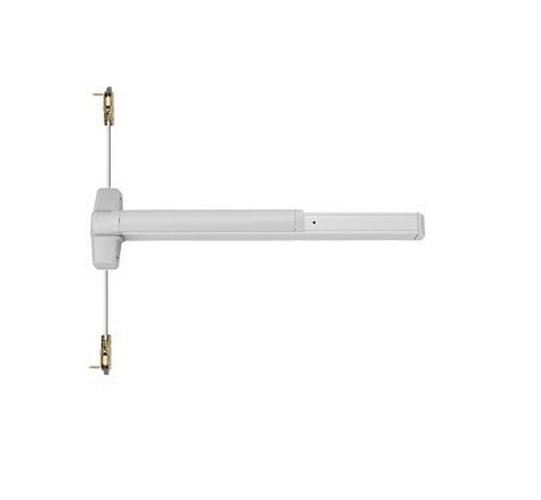

Von Duprin 9848EO Concealed Vertical Rod Device, For Metal Doors, Bottom Latch 1 1⁄2" Throw
In Stock
$1,957.39
Price:
$3,152.00
Instant Savings
$1,194.61
Grade 1 Concealed Vertical Rod Device, Exit Only, Hex Key Dogging, Field Reversible
Specifications
Device functions: EO - Exit Only
Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size - 4' 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor: 39 5⁄8" (1006 mm) Standard
Adjustable from 35 5⁄8" (905mm) to 49 5⁄8" (1260mm)
Center case: 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)

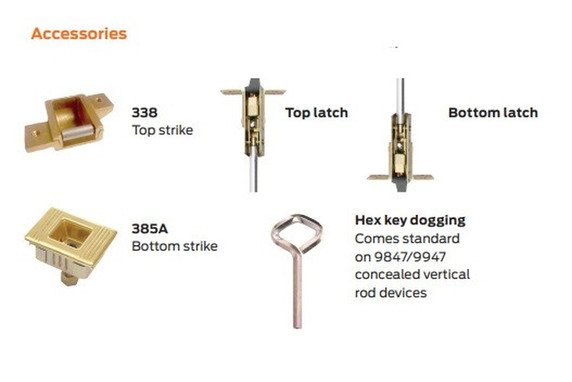

Latch bolt: Deadlocking top bolt, 5⁄8" (16mm) throw Deadlocking bottom bolt, 1 1⁄2" (38mm) throw
Door undercut: 3⁄4" (19mm) maximum, more than 1⁄4" minimum
Top and bottom latch case: 4 1⁄4" x 1 1⁄2" x 1 1⁄8" (107mm x 38mm x 28mm)
Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable
35 5⁄8" (905 mm) to 49 5⁄8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
Feature: Features smooth mechanism case
Finishes: 605 - Brights Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626/626AM - Satin Chrome,
628 - Satin Aluminum Clear Anodized, 710 - Dark Bronze Anodized Aluminum,711 - Black Anodized Aluminum
and 643E - 643E - Aged Bronze (619 and 630 available with 98 Series only)
Fasteners and sex bolts: Includes screw pack for 1 3⁄4" (44mm) to 2 1⁄4" (57mm) thick metal doors.
Model: Von Duprin 9848EO 3 US28, 9848EO 3 26D, 9848EO 3 313, 9848EO 3 315, 9848EO 3 US3, 9848EO 3 643E, 9848EO 3 32D, 9848EO 4 US28, 9848EO 4 26D, 9848EO 4 313, 9848EO 4 315, 9848EO 4 US3, 9848EO 4 643E, 9848EO 4 32D
